📄 Screenshots of the Mach4 / ESS Plugin configuration for C25XP and C82.

Screenshots of the Mach4 / ESS Plugin configuration for C25XP and C82.



Used software: Mach4 4.2.0.5920.

https://www.machsupport.com/ftp/Mach4/DevlopmentVersions/Mach4Hobby_Installer-4.2.0.5920.exe

ESS Plugin Mach4: ESS v320

https://warp9td.com/files/Plugins/ESS/Mach4/ESS_Mach4_v320.zip

STEP 1: The configuration on these instructions can be found in this Mach4  profile: Machine.ini

PLUGIN CONFIGURATION: Configure/Plugins/ESS 320.


Motors:


Spindle

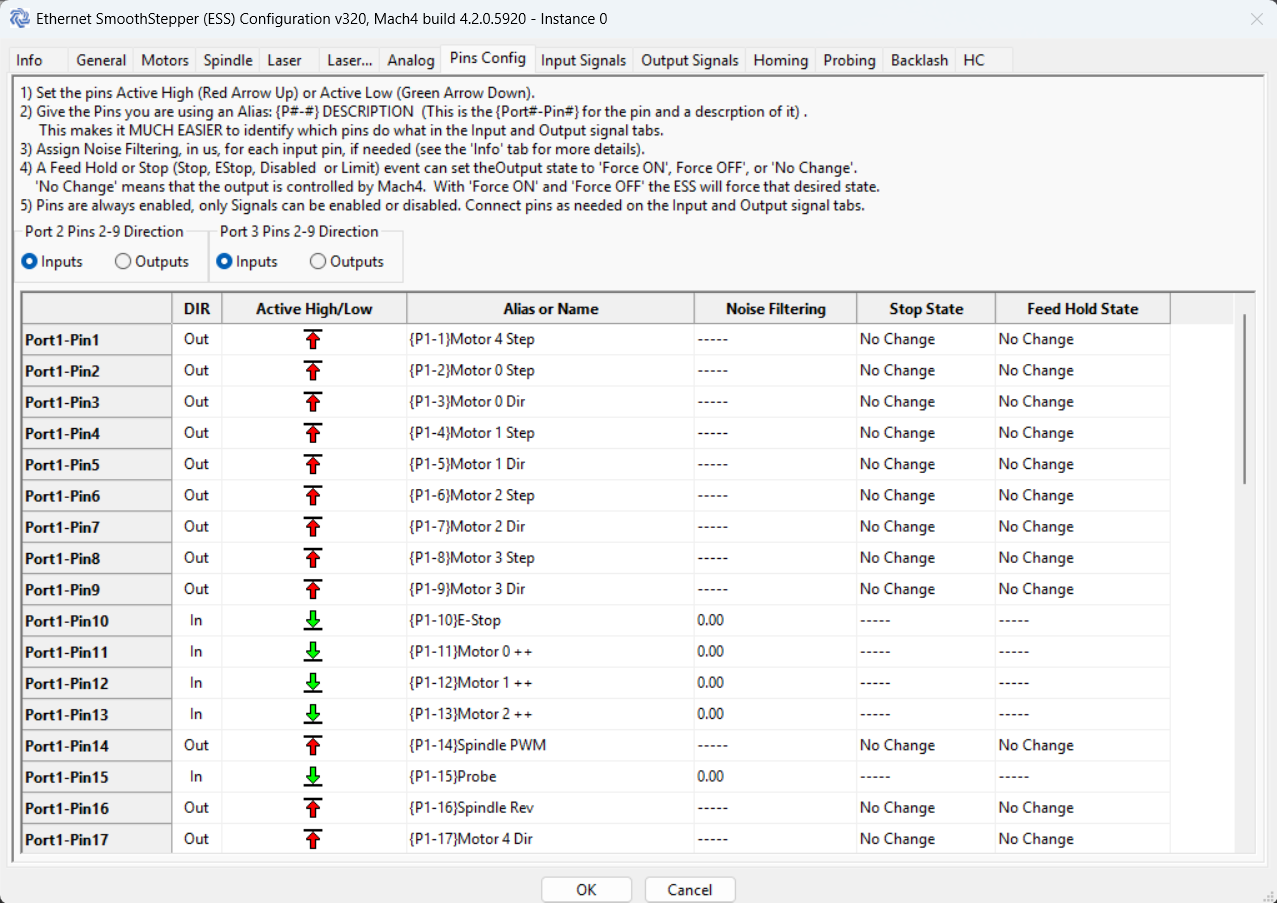

Pins Cofig Port_1

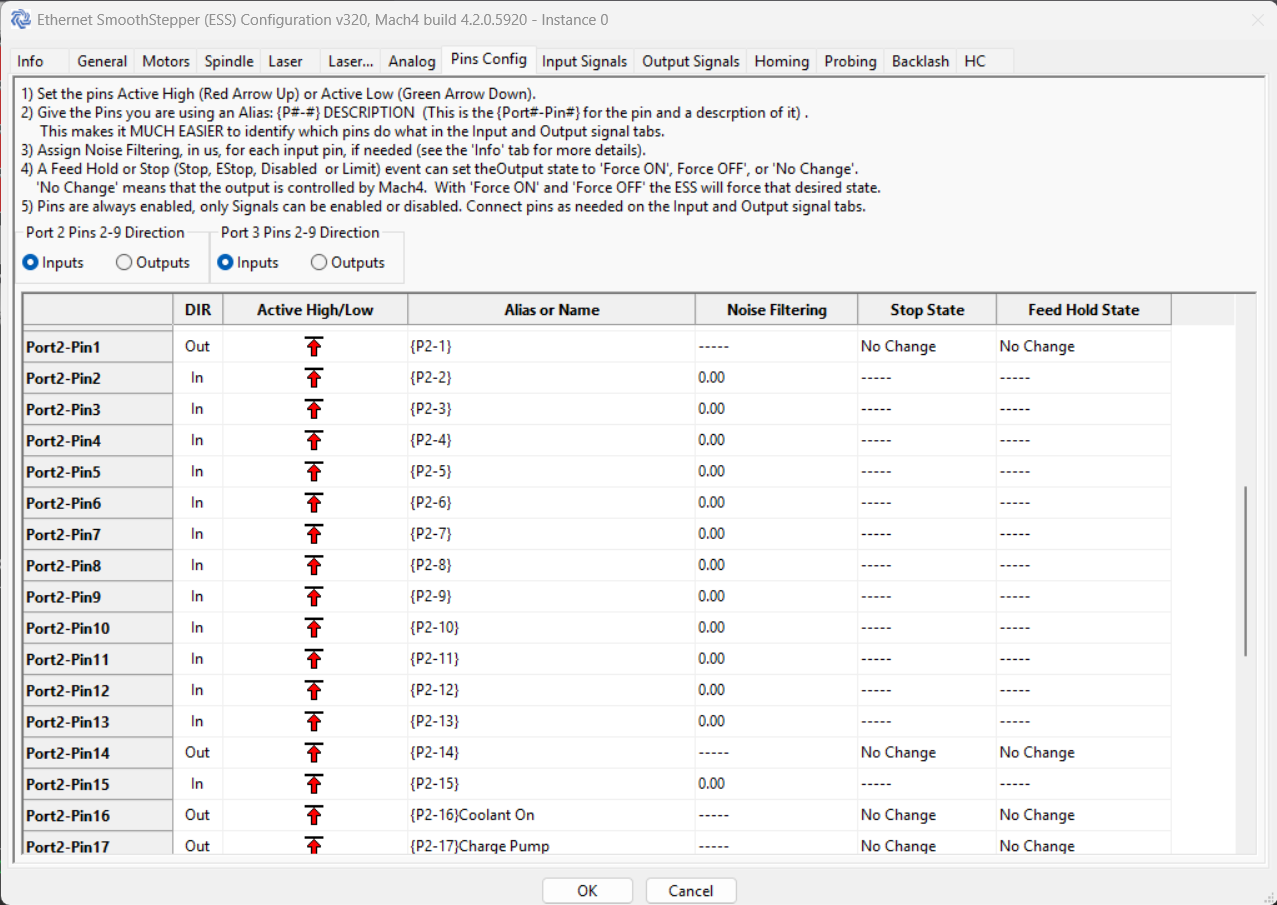

Pins Cofig Port_2

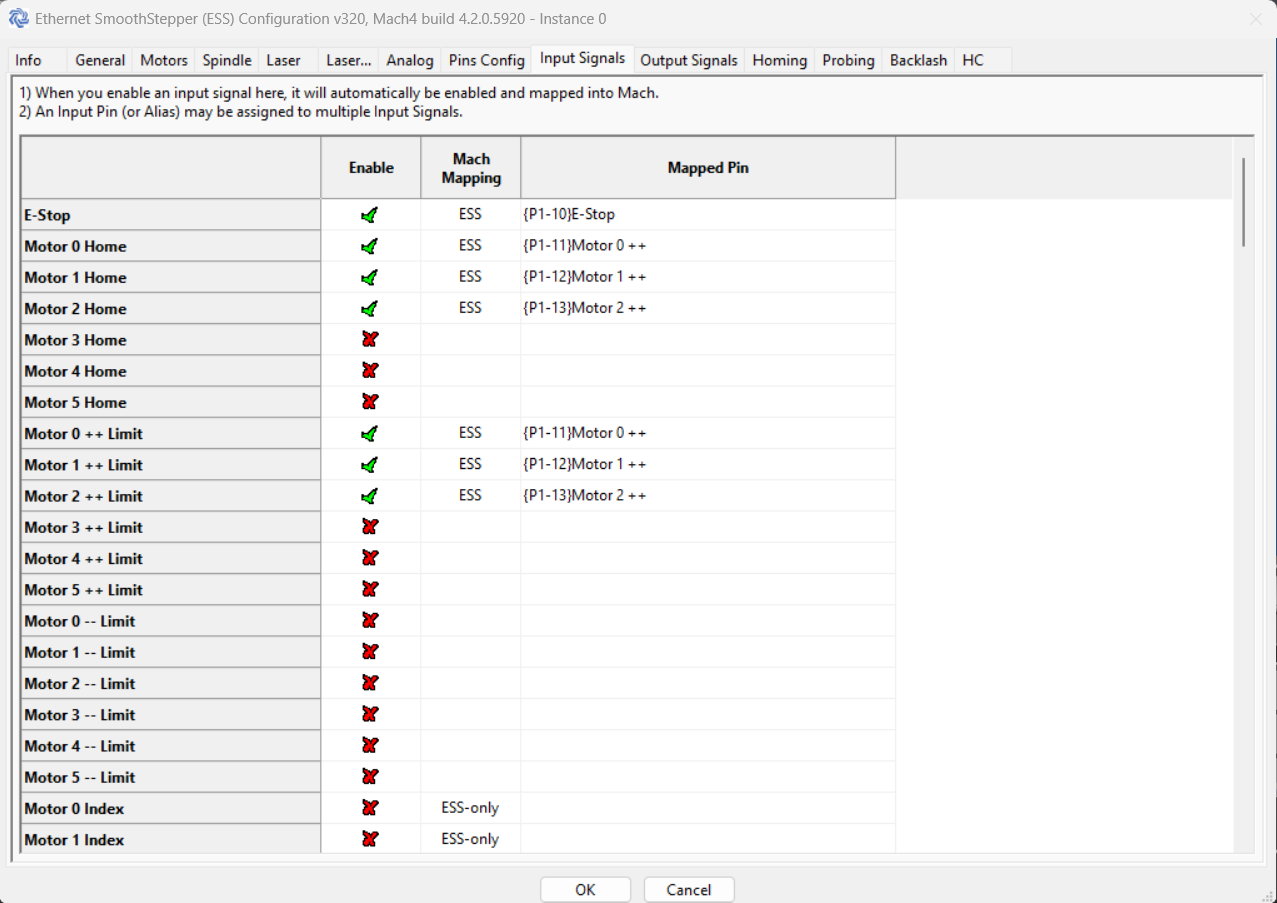

Input Signal

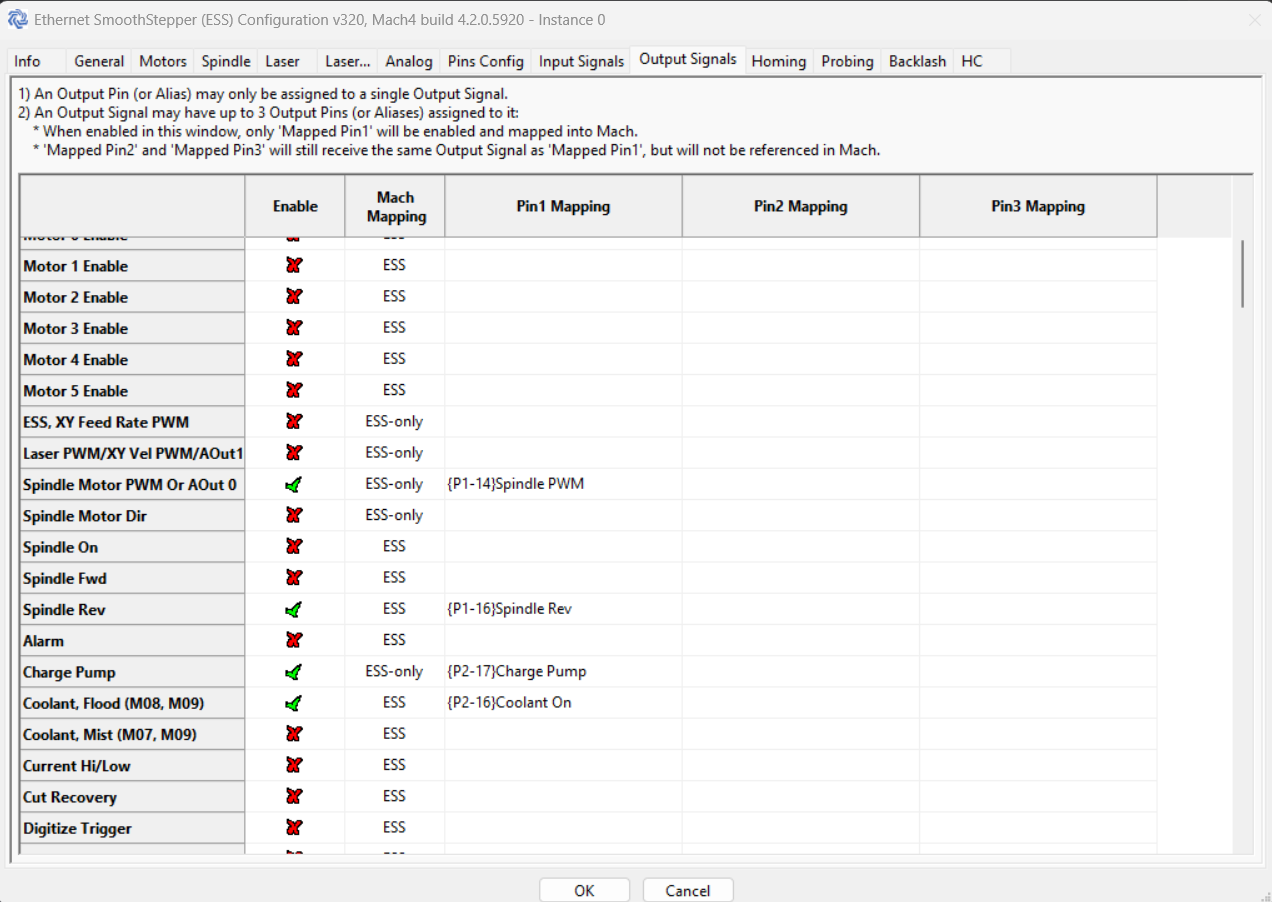

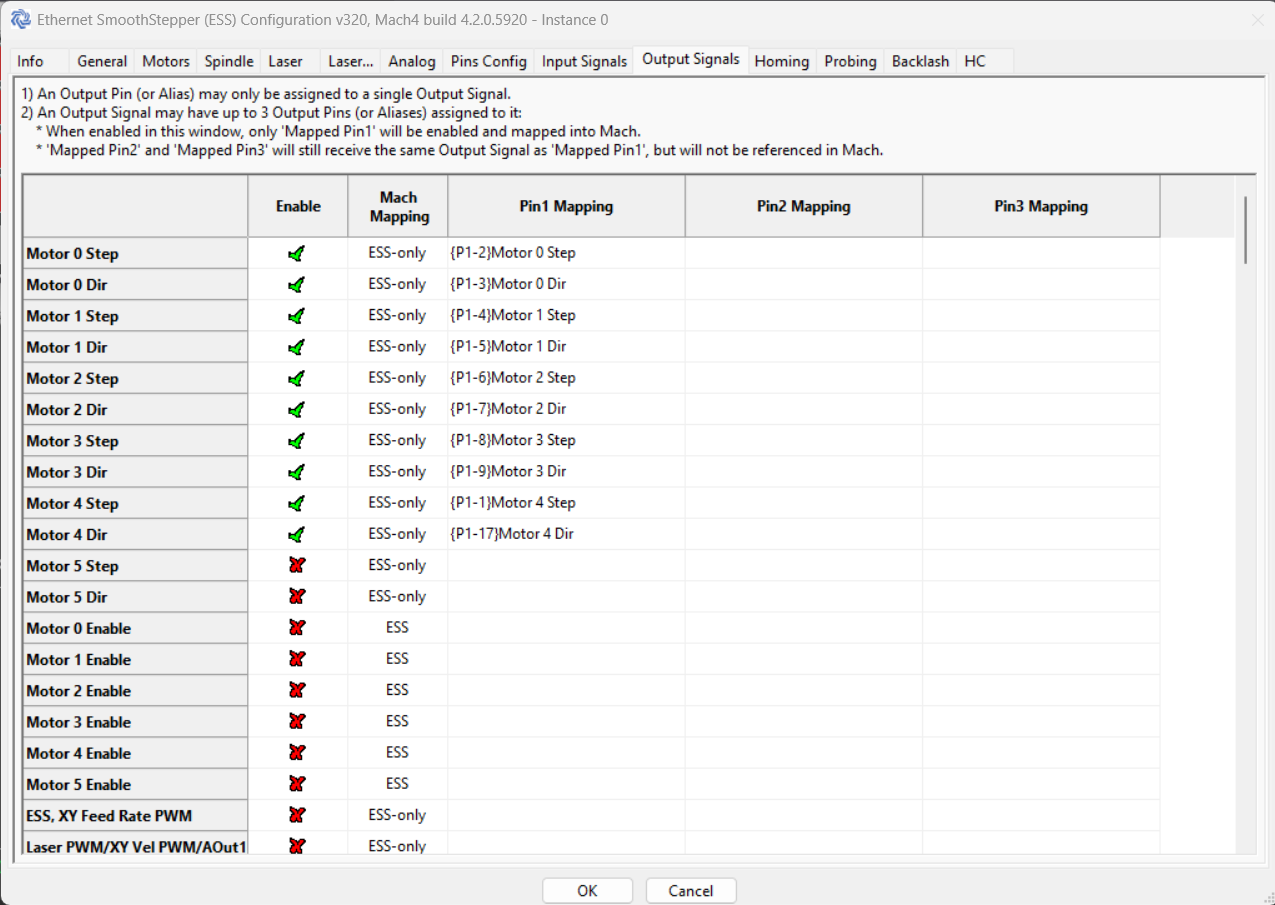

Output Signal


Homing


STEP 2: Mach4 Configuration: Configure/Control

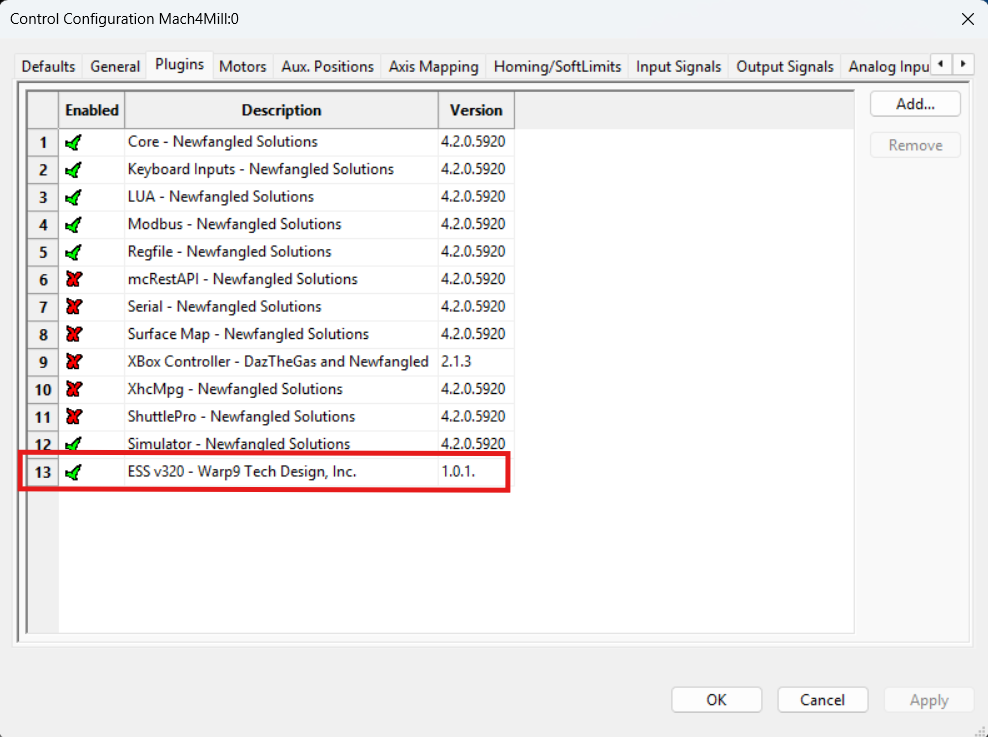

  • Plugins


  • Motors


  • Axis Mapping

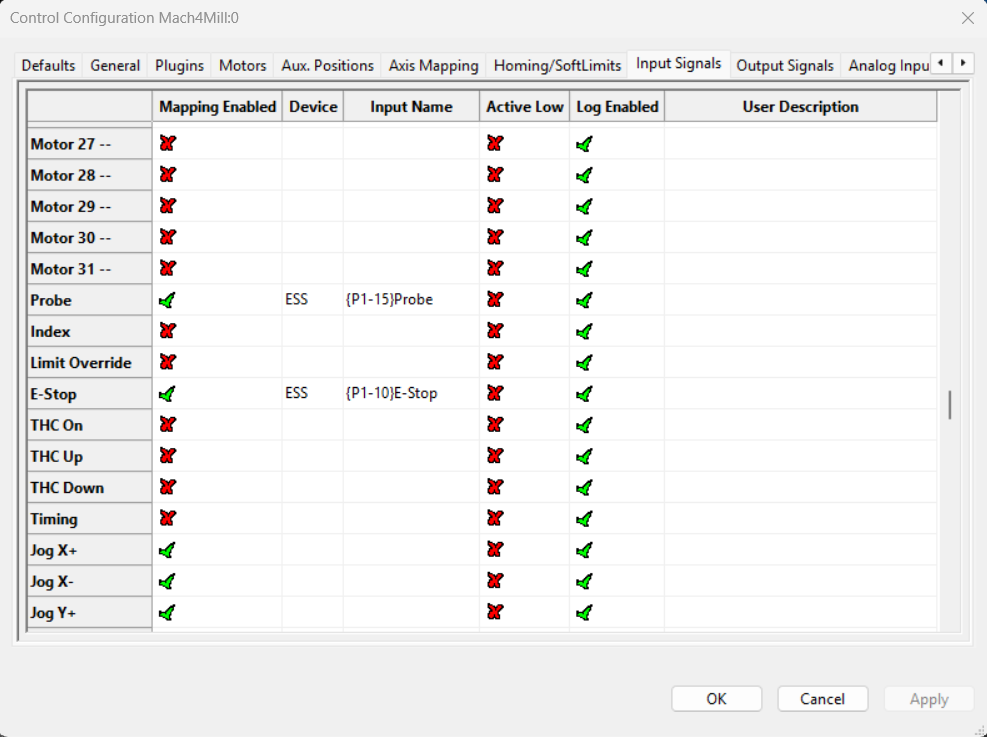

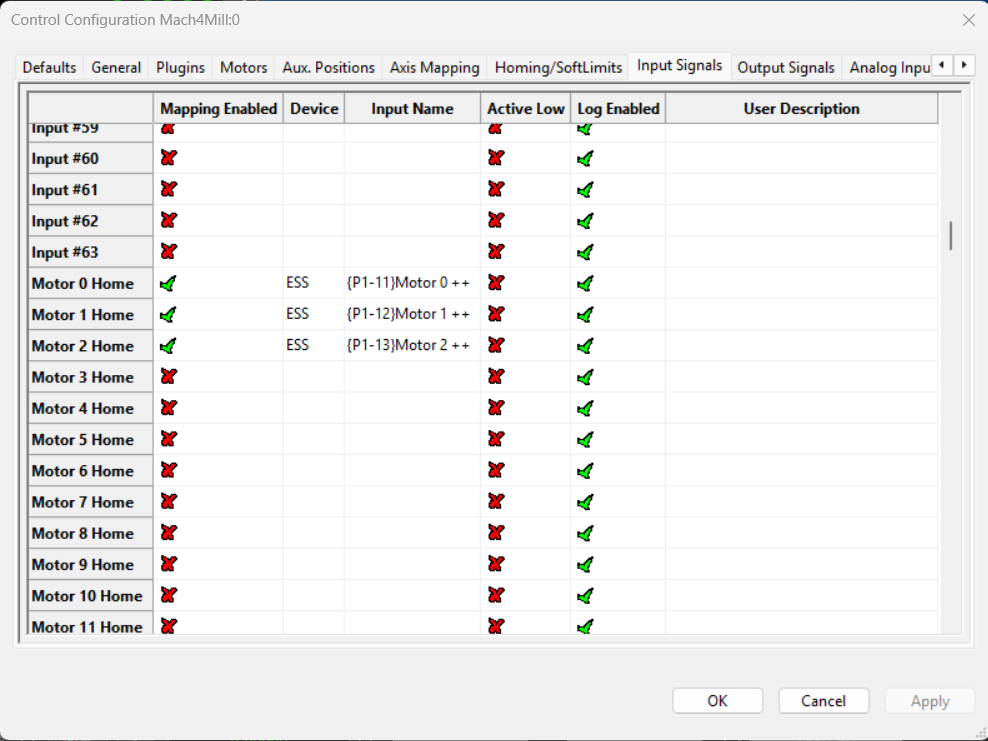

  • Input Signals

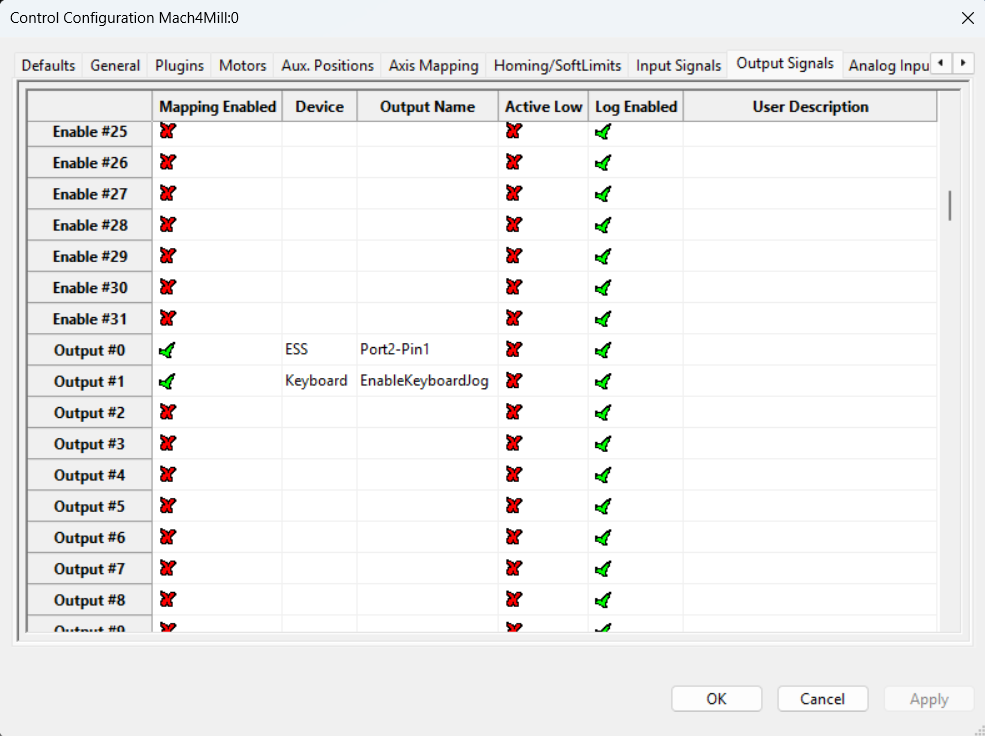

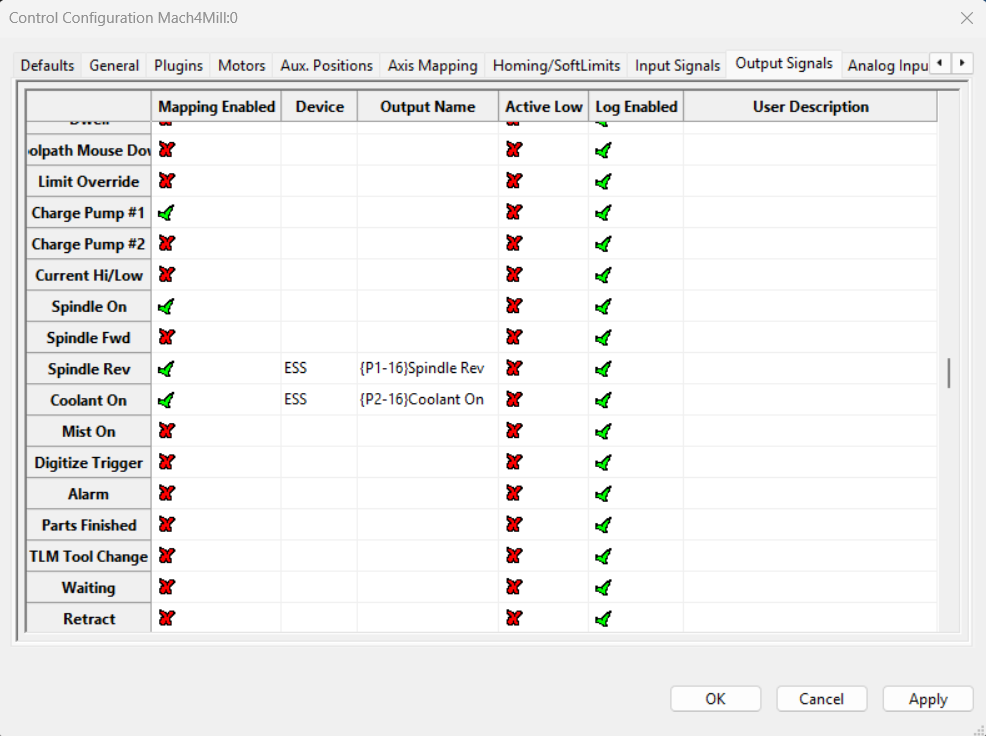

  • Output Signal


  • Spindle:

Make sure to set the Max Spindle Speed your spindle motor will give you so that Mach4 can scale correctly the PWM.
