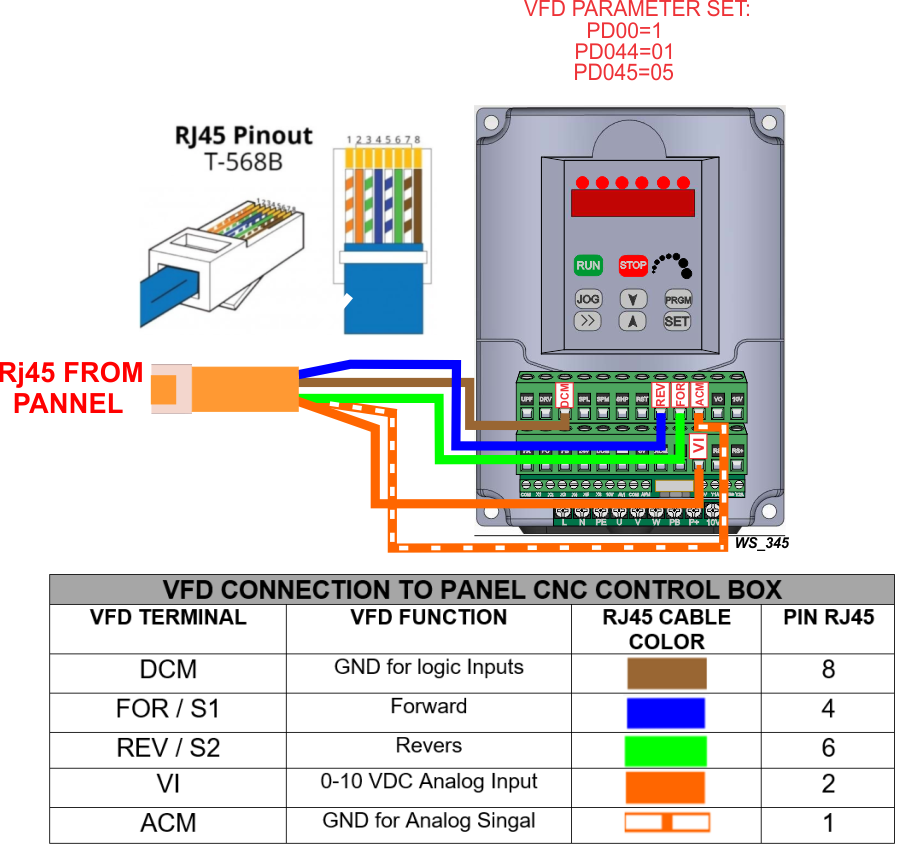

VFD to Panel CNC Control Box

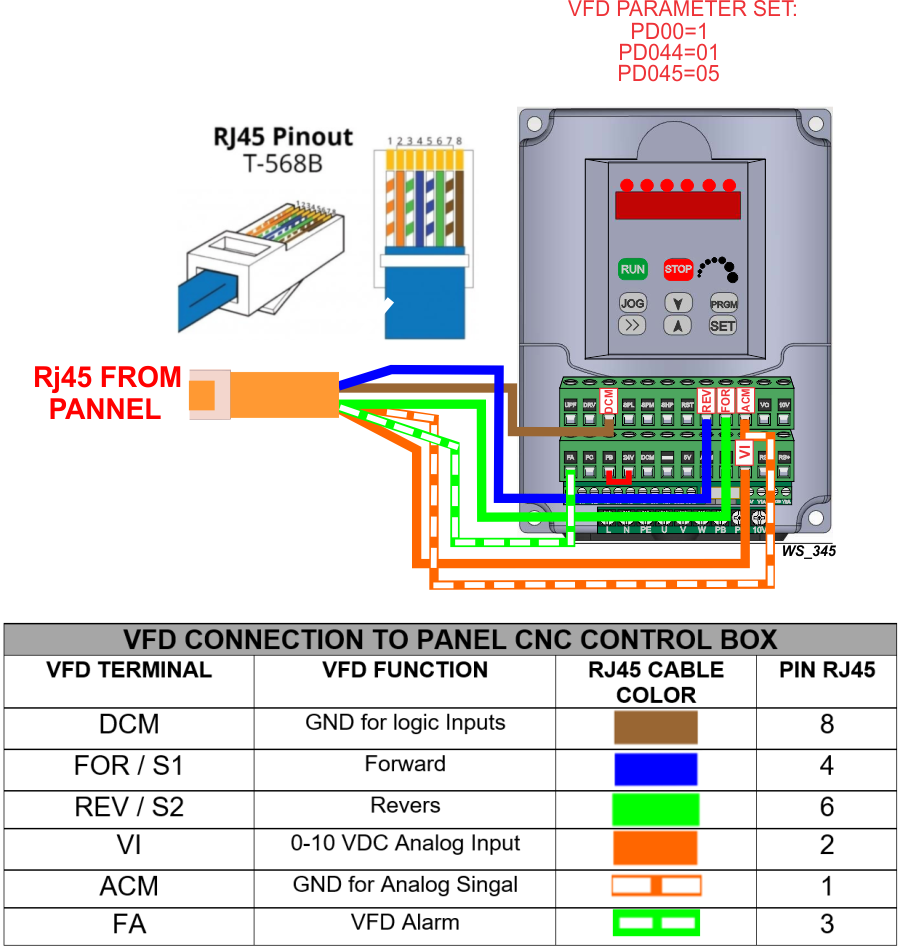

• Alarm DISABLE

• Alarm ENABLE

Recommendations:

• The configuration you did on the initial Step by Step instructions for Mach3 or Mach4 configured the control software and plugin, you just need to set the max spindle speed.

• Keep in mind that you need to configure the VFD to take the control signals through the terminals:

  • COMMAND	VALUE	DESCRIPTION
    PD001	1	Run from Terminal.
    PD002	1	Take Reference

Configuration de Min and  Max Spindle Speed.

• Mach3
  Config / Spindle Pulleys

• Mach4
  Config/Control/Spindle

• UCCNC
  SETTINGS / SPINDLE
