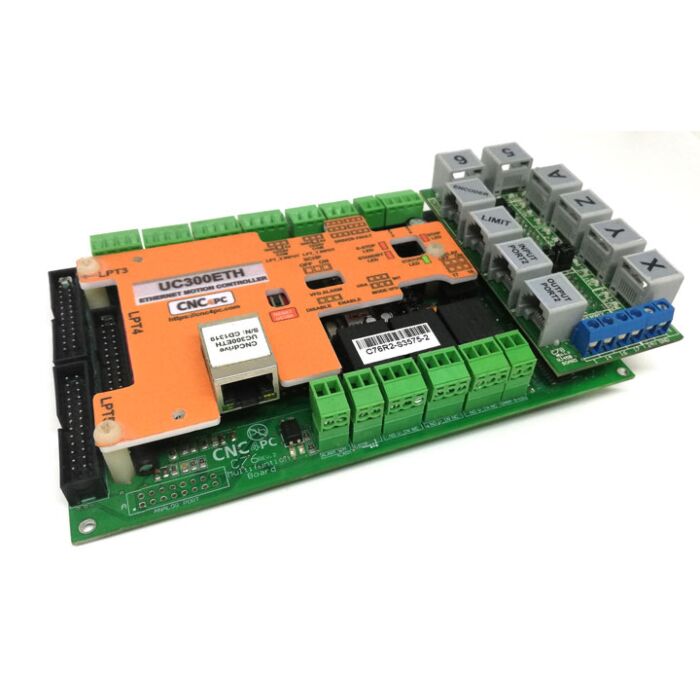

The C76 UC300ETH Multifunction CNC Control Board is designed specifically for the UC300ETH Ethernet Motion Controller, providing a convenient and reliable interface between the motion controller and CNC machine electronics. It is suitable for Mach3, Mach4, and UCCNC CNC control systems.
The C76 provides access to multiple digital and analog signals, with support for TTL and industrial open-collector inputs and outputs. It includes built-in PWM-based spindle speed control, two electromechanical relays, optoisolation, E-Stop monitoring, Safety Charge Pump, Driver Fault and VFD Fault monitoring.
FEATURES
- Designed for UC300ETH motion controller.
- 3 Expansion Ports
- Built-in PWM-Based Speed Control and Two Built-in Electromechanical Relays with NO and NC positions for spindle control.
- Monitors E-Stop, Safety Charge Pump, Driver Fault, and VFD Fault.
- It is compatible with family of C34 connector boards that allow quickly connecting to popular drives connecting not just the step and direction signals, but also the fault and enable signals.
- Electromechanical Relay with NO and NC positions for general purpose (Port_2 16 or 17, jumper-selectable). If tied to pin 17 The relay will remain active while the system is active, making it ideal to control the power to the system.
- Independent Optoisolation Circuits for each port.
- Power terminal (10-30VDC). This can power the entire logic of the system.
- Outputs +3.3vdc at 24mA TTL.
- Status LEDs on all input's connections.
- 18 inputs ports.
- Flexible Driver Connection.
- Analog I/O port pinout.
