📄 C94 – MULTIFUNCTION CNC BOARD Rev.2




          C94 – MULTIFUNCTION CNC BOARD Rev.2



                                                                                    OCTOBER 2022


USER'S MANUAL TABLE OF CONTENTS







1.0         FEATURES

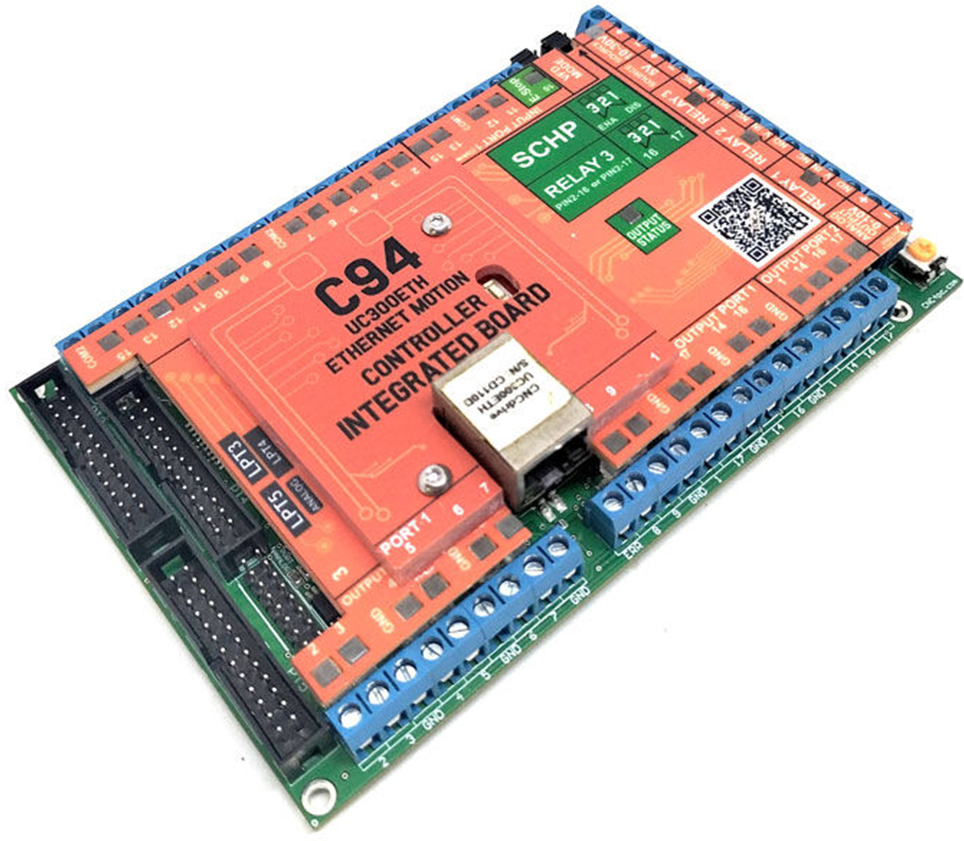

  • Can ship the UC300ETH Motion Controller installed when purchased as a bundle
  • Emulates 5 Parallel Ports.
  •  3 Expansion Ports for connecting additional breakout or relay boards.
  •  Two Analog Inputs and Two Outputs.
  •  Built-in PWM-Based Speed Control and Two Built-in Electromechanical Relays with NO and NC positions for spindle control.
  •  The system monitors:
    -  E-Stop
    -  Safety Charge Pump.
  •  Electromechanical Relay with NO and NC positions for general purpose or tied to the Enable Signal (Port_2 16 or 17, jumper-selectable).
  •  Microcontroller-based Safety Charge Pump (SCHP).
  •  Optoisolated inputs working at 5-24VDC.
  •  Uses a single voltage of 10 to 30VDC to power the system.  It generates the isolated voltage for the spindle control circuit and +5VDC for circuits using TTL logic.
  •  Status LEDs on all Input and Output connections.
  •  DIN Rail mountable.
  •  Open-Collector Outputs: pins 1, 14, 16, and 17 on port 2.
  •  Screw-On connections for all terminals.
  •  Status LEDs for enable.
  •  Available installers and configuration files that configure all the functions of the board.


2.0         I/O SPECIFICATIONS

Inputs and Outputs are jumper-selected to be TTL or Open collector.

PINS

PORT1

PORT2

PORT3

PORT4

PORT5

TOTAL

INPUT

5

13

13

5

13

49

OUTPUT

12

4

4

12

4

36

TOTAL

17

17

17

17

17

 93



                                      OPTOISOLATED DIGITAL INPUT TTL SPECIFICATIONS

On-state voltage range

5 to 24VDC

Maximum off-state voltage

0.8V

Typical signal delay

2.8uS



                                                           DIGITAL OUTPUT TTL SPECIFICATIONS

Maximum output voltage

5VDC

Maximum output current

50mA

Maximum off-state voltage

0.44 V

Maximum supported frequency

400KHz

Typical signal delay

10nS

Time of transition to high impedance state

12 s*



                                                          OPEN COLLECTOR OUTPUT SPECIFICATIONS

Maximum output voltage

60VDC

Maximum output current

2A

Typical signal delay

0.5 µS

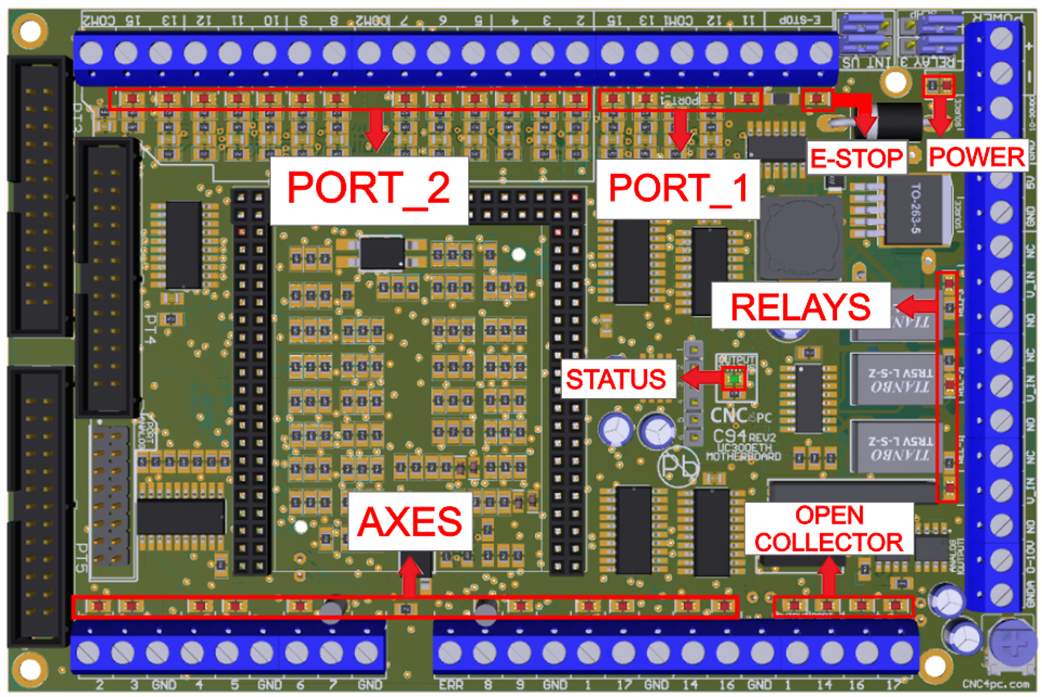

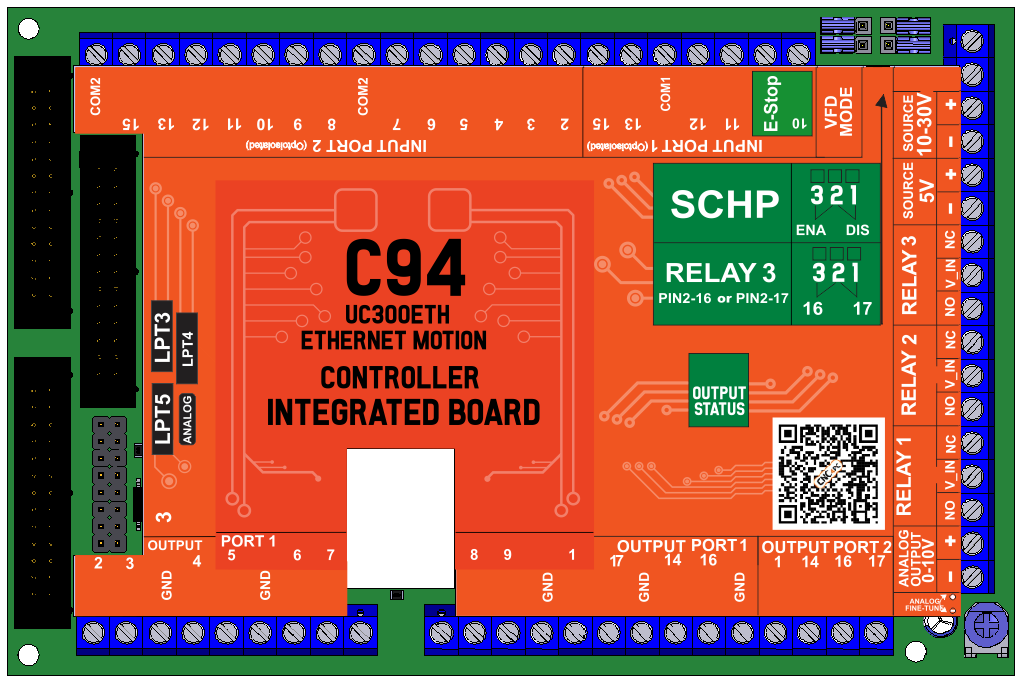

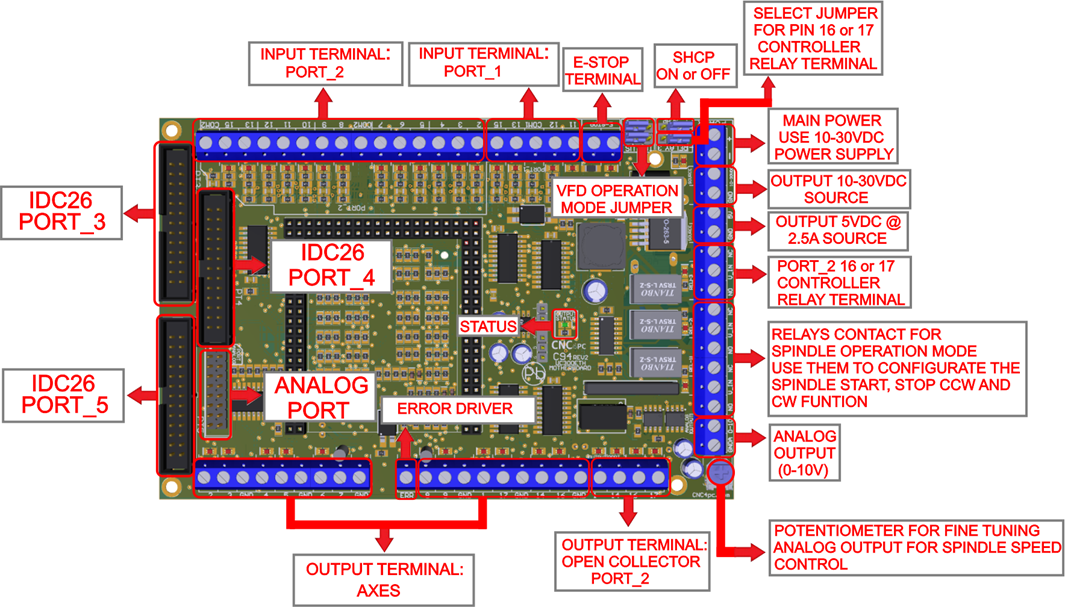

3.0         BOARD DESCRIPTION







4.0         POWER TERMINALS AND CONFIGURATION

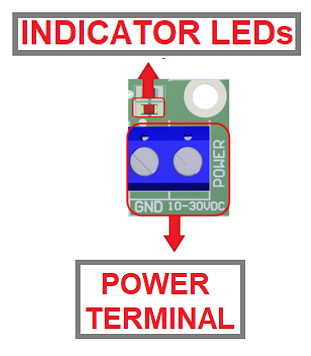

4.1      Power terminal

Regulated +10VDC or +30VDC at 2 Amps is required to power this board.  Additional amperage must be supplied if sourcing current on the open collector outputs or using the Expansion IDC26 ports to power breakout or relay boards.





⚠️

Check the polarity and voltage of the external power source and connect the 10VDC to 30VDC and GND. Overvoltage or reverse-polarity power applied to these terminals can cause damage to the board, and/or the power source


4.2      Source Output 5VDC

The board can supply a regulated voltage to power external devices or circuits.





4.3      Source Output 10-30VDC

10-30VDC can be sourced to sensors or other cards requiring it.




4.4      ERROR DRIVER

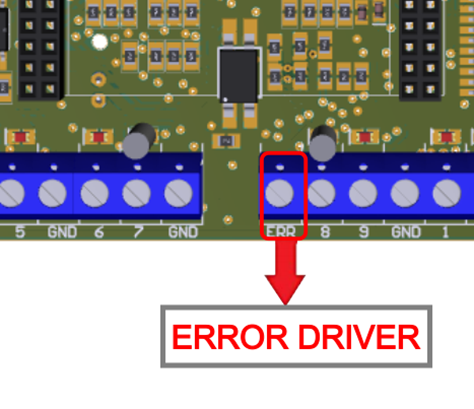

In order to start the driver monitoring function, it is necessary to connect the driver Alarm to the ERR terminal.

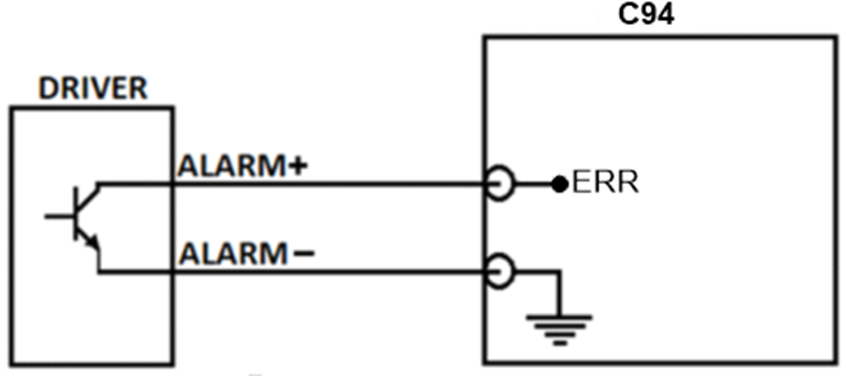

4.4      WIRING ERROR DRIVER

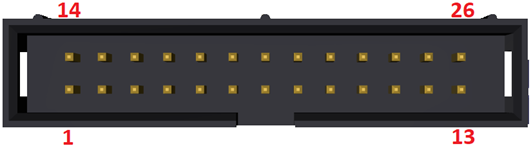

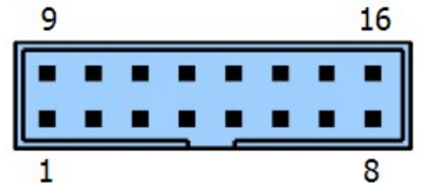

5.0         LPT_3 AND LPT_5 INPUT EXPANSION PORT







                                                                         LPT 3 and LPT 5

Equivalent P.P. Pin

UC300 Function

P_1

OUTPUT

P_2

INPUT

P_3

INPUT

P_4

INPUT

P_5

INPUT

P_6

INPUT

P_7

INPUT

P_8

INPUT

P_9

INPUT

P_10

INPUT

P_11

INPUT

P_12

INPUT

P_13

INPUT

P_14

OUTPUT

P_15

INPUT

P_16

OUTPUT

P_17

OUTPUT

P_18

GND

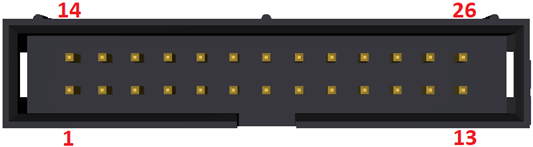

6.0         LPT_4 OUTPUT EXPANSION PORT





                                                                                       LPT 4

Equivalent P.P. Pin

UC300 Function

P4_1

OUTPUT

P4_2

OUTPUT

P4_3

OUTPUT

P4_4

OUTPUT

P4_5

OUTPUT

P4_6

OUTPUT

P4_7

OUTPUT

P4_8

OUTPUT

P4_9

OUTPUT

P4_10

INPUT

P4_11

INPUT

P4_12

INPUT

P4_13

INPUT

P4_14

OUTPUT

P4_15

INPUT

P4_16

OUTPUT

P4_17

OUTPUT

P4_18

GND




7.0         ANALOG I/O PORT PINOUT.

The analog port contains 2 analog inputs and 2 analog outputs. This port also contains a 5V power output.



Pin

Signal direction

1

5 Volt output

2

Ground

3

Analog input 1.

4

Analog input 2.

5

Ground

6

Analog output 1.

7

Analog output 2.

8

5 Volt output

9

5 Volt output

10

Ground

11

Analog input 1.

12

Analog input 2.

13

Ground

14

Analog output 1.

15

Analog output 2.

16

5 Volt output



8.0         E-STOP TERMINAL (24V)

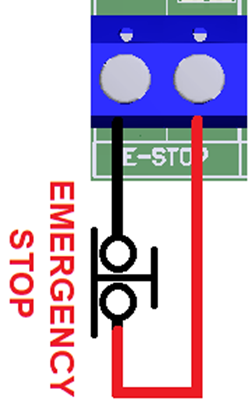

Connect an E-STOP push button as shown in the images below.





Pin 10, port 1 is used for E-Stop.  Since this board controls the enable line, and the enable line is the one responsible for notifying the controller of the e-stop condition, the user does not have direct access to the pin itself, just to the e-stop terminal on the board. The E-Stop terminal is tied to the enable line and will trigger the E-Stop.   A fault or E-Stop triggers a low for 5 seconds to notify the controller of the fault condition, then resets to high again

💡

E-Stop on Pin 10, port 1:
Pin 10 is a special input; it is tied to the hardware enable of the system.



9.0         CONFIGURATION JUMPERS

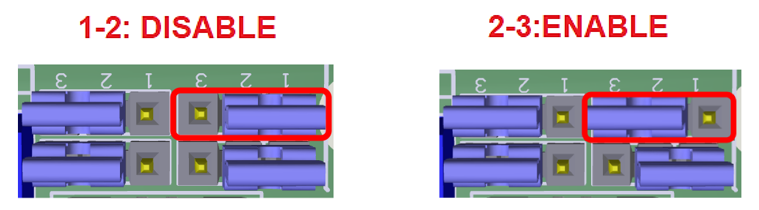

9.1      Selecting the SCHP operation mode



The Safety Charge Pump can be activated or deactivated depending on the jumper position.  If the SCHP is enabled, the board will require the SCHP coming from the controller to be present in order to get activated (green LED).

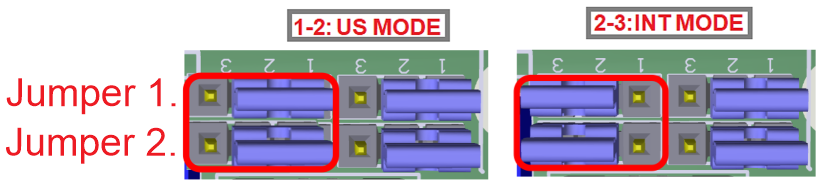

9.2      Configuration jumper mode US or INT



 Relay 1 and 2

They can be used to control the VFD. The relay specifications are shown in this table.

                                                        ELECTROMECHANICAL RELAYS SPECIFICATIONS

Maximum Current (AC)

2A@125VAC

Maximum Current (DC)

2A@60VDC





UC300ETH MOTHER BOARD

https://www.cnc4pc.com/uc300eth-ethernet-motion-controller-b.html

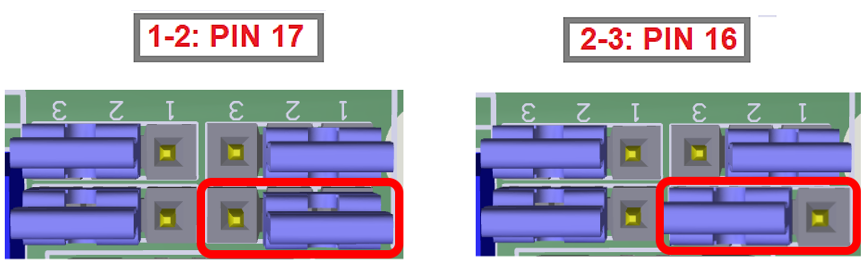

9.3      Relay 3 Operation can be assigned to pins 16 or 17 on port 2.

If assigning the relay to pin 17 on port 2 and using the Safety Charge Pump, then the relay will activate with the board is activated.  This can be very useful as it can be used to activate the main contactor for the system or relays that activate devices.







💡

Relay 1 and Relay 2

Set the VFD jumper 1 to INT and Jumper 2 to US, then access Relay 1 on pin 14 and Relay 2 on pin 16, both on port 2.





10.0     GENERAL PURPOSE OUTPUT TERMINALS

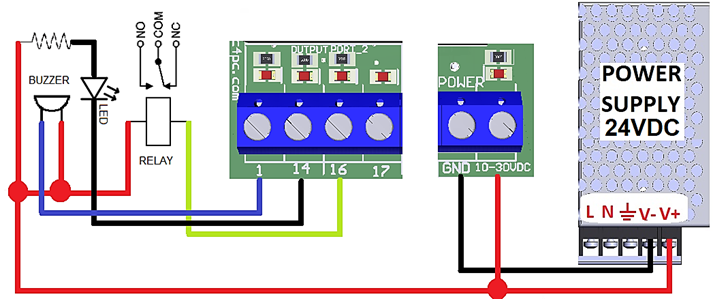

Open Collector Outputs Sample Wiring






11.0     LEDs

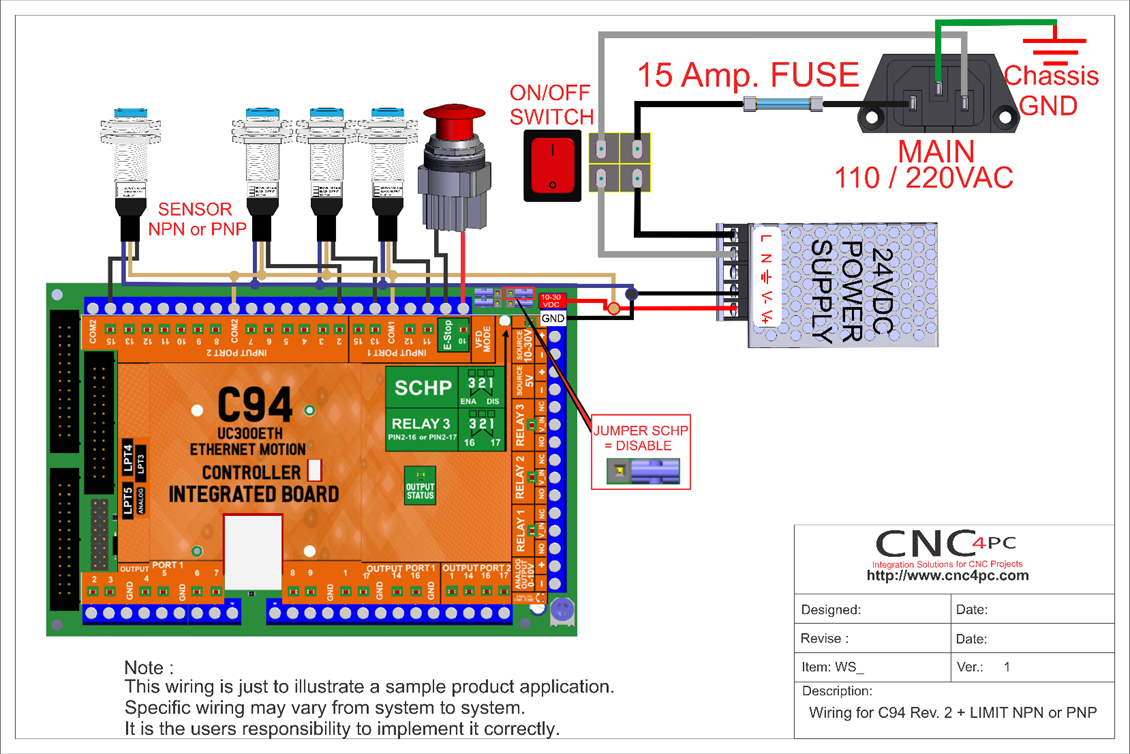

12.0     WIRING SAMPLE FOR INPUT PORT_1 AND PORT_2

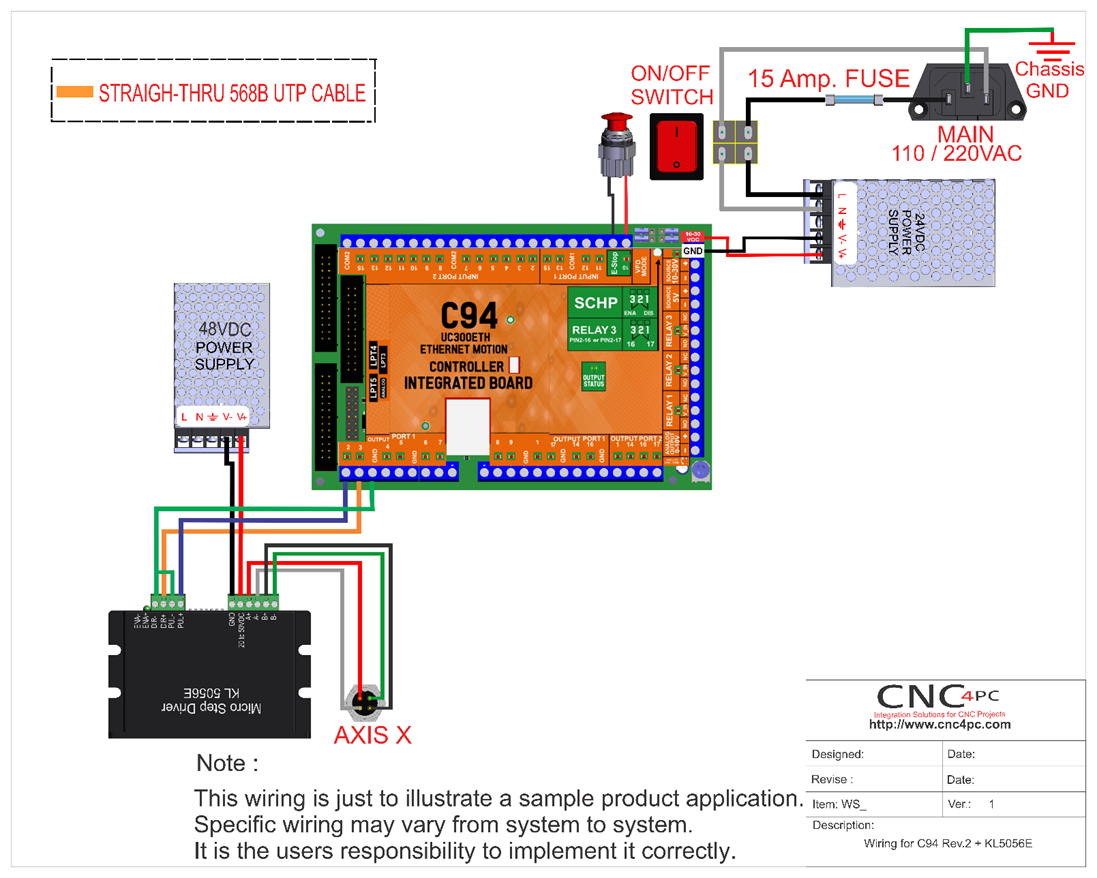

13.0     AXES WIRING SAMPLE

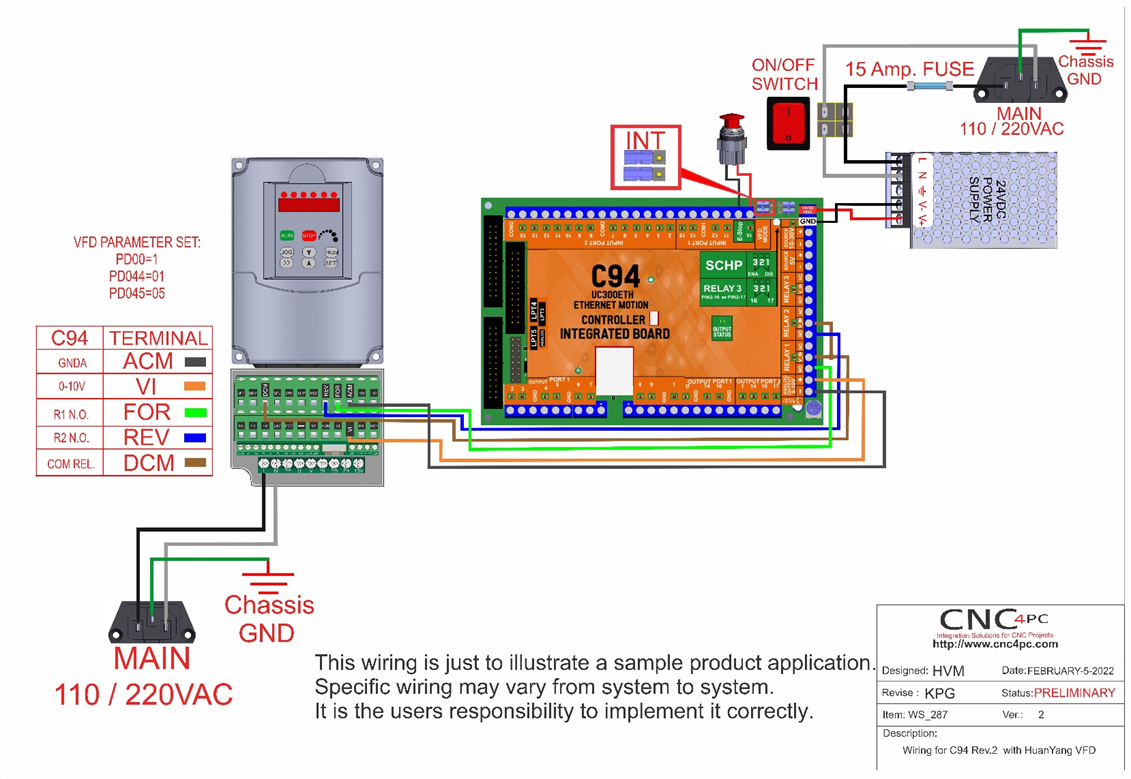

14.0     WIRING SAMPLE VFD

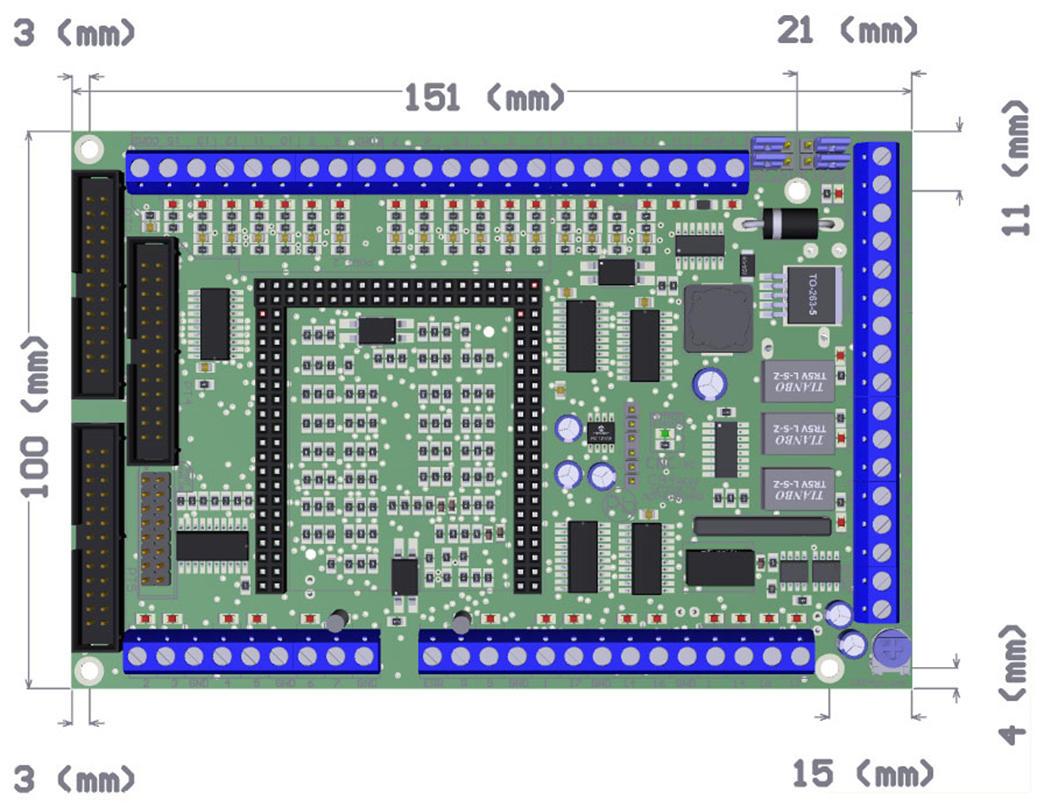

15.0        DIMENSIONS


💡

DISCLAIMER

Use caution. CNC machines can be dangerous. Neither IGNITE, LLC nor Arturo Duncan is liable for any accidents resulting from the improper use of these devices.  This product is not a fail-safe device, and it should not be used in life support systems or in other devices where its failure or possible erratic operation could cause property damage, bodily injury, or loss of life.
