Description

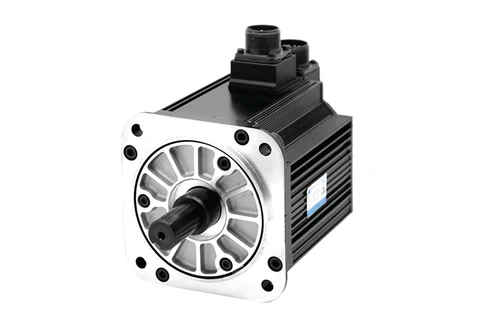

1.0kW Medium Inertia AC Servo Motor.
Please contact us for non-standard inventory options, including holding brake, oil seal, or custom options.
Model# 11A-DST-A6 _ _ 1
Motor Specification
| Servo Motor Model | 11A-DST-A6 _ _ 1 |
|---|
| Rated Output |
1.0kW |
| Rated Voltage |
200V |
| Applicable Servo Drive |
DYN4 |
| Rated Torque |
4.77Nm |
| Instantaneous Max. Torque |
14.3Nm |
| Rated Current |
8.2A |
| Max. Current |
24.6A |
| Rated Speed |
1500rpm |
| Max. Speed |
3000rpm |
| Rotor Inertia |
8.5kg-cm^2 |
| Torque Coefficient |
0.774N∙m/A |
| Encoder |
16-bit Absolute [ ABS-16-01 ] |
| Mass |
8.95kg |
| Ratings |
Time Rating: Continuous
Thermal Class: F
Excitation Method: Permanent Magnet
Insulation Resistance: DC500V, >20MΩ
Noise: ≤60dB; No Special Noise |
| Environment |
Ambient Temperature: 0~40 °C
Storage: -20~50°C
Ambient Humidity: 20~80%
No Condensation |
| Enclosure |
IP65 |
| Shock |
98m/s2 Max. (10G)
|
