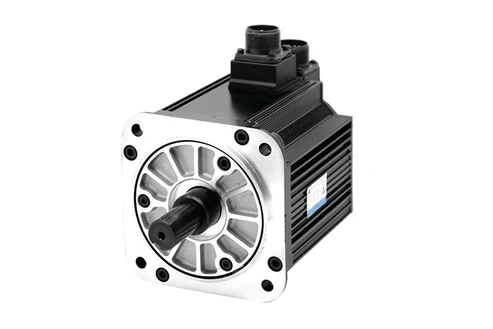

11A-DST-A6HKB - 130mm Frame, 1.0kW, 200V Class, Keyed Shaft, +24VDC holding brake

https://www.cnc4pc.com/web/image/product.template/930/image_1920?unique=9efcfb8

Description

1.0kW Medium Inertia AC Servo Motor.

Please contact us for non-standard inventory options, including holding brake, oil seal, or custom options.

Model# 11A-DST-A6 _ _ 1

Motor Specification
Servo Motor Model11A-DST-A6 _ _ 1
Rated Output 1.0kW
Rated Voltage 200V
Applicable Servo Drive DYN4
Rated Torque 4.77Nm
Instantaneous Max. Torque 14.3Nm
Rated Current 8.2A
Max. Current 24.6A
Rated Speed 1500rpm
Max. Speed 3000rpm
Rotor Inertia 8.5kg-cm^2
Torque Coefficient 0.774N∙m/A
Encoder 16-bit Absolute [ ABS-16-01 ]
Mass 8.95kg
Ratings Time Rating: Continuous
Thermal Class: F
Excitation Method: Permanent Magnet
Insulation Resistance: DC500V, >20MΩ
Noise: ≤60dB; No Special Noise
Environment Ambient Temperature: 0~40 °C
Storage: -20~50°C
Ambient Humidity: 20~80%
No Condensation
Enclosure IP65
Shock 98m/s2 Max. (10G)

597.00 597.0 USD 597.00
