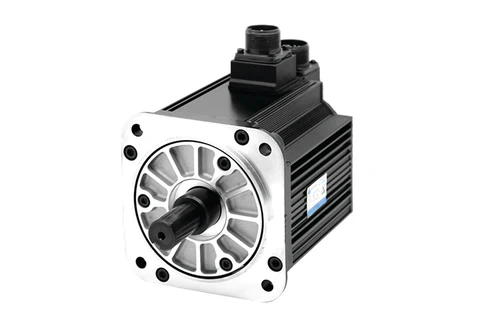

120-DST-A6HK1 -130mm Frame, 1.8kW, Keyed Shaft, 200V Class
-
1.8kW Medium Inertia AC Servo Motor.
Please contact us for non-standard inventory options, including holding brake, oil seal, or custom options.
Model# 120-DST-A6 _ _ 1
Motor SpecificationServo Motor Model 120-DST-A6 _ _ 1 Rated Output 1.8kW Rated Voltage 200V Applicable Servo Drive DYN4-T01 Rated Torque 11.5Nm Instantaneous Max. Torque 28.7Nm Rated Current 16.7A Max. Current 36.3A Rated Speed 1500rpm Max. Speed 3000rpm Rotor Inertia 23.8kg-cm^2 Torque Coefficient 0.74N∙m/A Encoder 16-bit Absolute [ ABS-16-01 ] Mass 9.38kg Ratings Time Rating: Continuous
Thermal Class: F
Excitation Method: Permanent Magnet
Insulation Resistance: DC500V, >20MΩ
Noise: ≤60dB; No Special NoiseEnvironment Ambient Temperature: 0~40 °C
Storage: -20~50°C
Ambient Humidity: 20~80%
No CondensationEnclosure IP65 Shock 98m/s2 Max. (10G)
