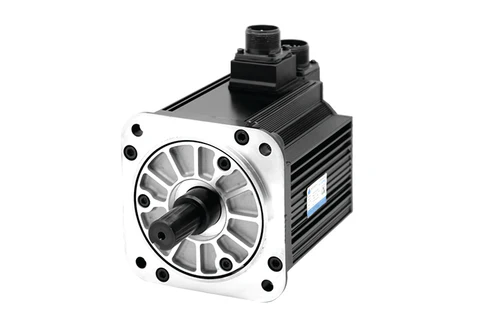

120-DST-A6HKB - 130mm Frame, 1.8kW, Keyed Shaft, 200V Class, +24VDC Holding Brake

Name: 120-DST-A6HKB - 130mm Frame, 1.8kW, Keyed Shaft, 200V Class, +24VDC Holding Brake
Price: 835.0 USD
Availability: InStock

1.8kW Medium Inertia AC Servo Motor.

Please contact us for non-standard inventory options, including holding brake, oil seal, or custom options.

Model# 120-DST-A6 _ _ 1

Motor Specification

Servo Motor Model	120-DST-A6 _ _ 1
Rated Output	1.8kW
Rated Voltage	200V
Applicable Servo Drive	DYN4-T01
Rated Torque	11.5Nm
Instantaneous Max. Torque	28.7Nm
Rated Current	16.7A
Max. Current	36.3A
Rated Speed	1500rpm
Max. Speed	3000rpm
Rotor Inertia	23.8kg-cm^2
Torque Coefficient	0.74N∙m/A
Encoder	16-bit Absolute [ ABS-16-01 ]
Mass	9.38kg
Ratings	Time Rating: Continuous Thermal Class: F Excitation Method: Permanent Magnet Insulation Resistance: DC500V, >20MΩ Noise: ≤60dB; No Special Noise
Environment	Ambient Temperature: 0~40 °C Storage: -20~50°C Ambient Humidity: 20~80% No Condensation
Enclosure	IP65
Shock	98m/s2 Max. (10G)

$ 835.00

Shaft Type: With Key

Holding Brake: With +24VDC Brake

Motor Frame: 130 mm
