  3. 2200W 3HP Water Cooled CNC Milling Spindle, 2200T, for Metal and Aluminum, with 85 mm Mount Bracket Clamp
New Default Price list

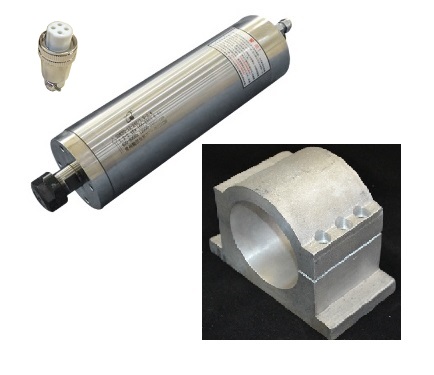

2200W 3HP Water Cooled CNC Milling Spindle, 2200T, for Metal and Aluminum, with 85 mm Mount Bracket Clamp

2200W 3HP Water Cooled CNC Milling Spindle, 2200T, for Metal and Aluminum, with 85 mm Mount Bracket Clamp

https://www.cnc4pc.com/web/image/product.template/1519/image_1920?unique=ecd3d17

Constant Torque Spindle:  CONSTANT TORQUE electric spindles suit applications where maximum cutting power is required near maximum spindle speed. Their torque is constant, so power increases steadily from zero at zero speed to full power at full speed.

This Spindle is used for Metal and Aluminum

  • Product name: 2200T,
  • Diameter:85mm ( 85 mm Mount Bracket Clamp is included)
  • Rotating speed: -12000-24000RPM
  • Rated power: 2.2KW
  • Torque: 0.88Nm
  • Voltage: 220 V
  • Current: 7.6A
  • Frequency: 400Hz
  • Number of poles: 2P
  • Connection of spindle end: ER20
  • Cooling: Water-cooled
  • Lubrication: Grease
  • Bearing No.: 4 bearing,  2X7005C P4, 2X7002C P4
  • Weight: 10Kg
  • One-year warranty
  • ER20 collet chuck. (But tool is not included: you can use 1/16", 3/32", 1/8", 3/16", 7/32", 1/4", 5/16", 11/32", 3/8", 13/32", 7/16", 1/2" ) or (1mm,2mm,3mm,4mm,5mm,6mm,7mm,8mm,9mm,10mm,11mm,12mm,13mm)
  • Runout off: less than 0.005mm
  • Water cooling about 20-26 gal/hr
  • about 15 ibs

$ 646.92 646.92 USD $ 646.92

Not Available For Sale

  • Watts
  • Volts
  • RPM
  • Collet
  • Cooled
  • Frequency

This combination does not exist.

Contact Us
Watts: 4.5Kw
Volts: 220V
RPM: 24000
Collet: ER20
Cooled: Water
Frequency: 400Hz
