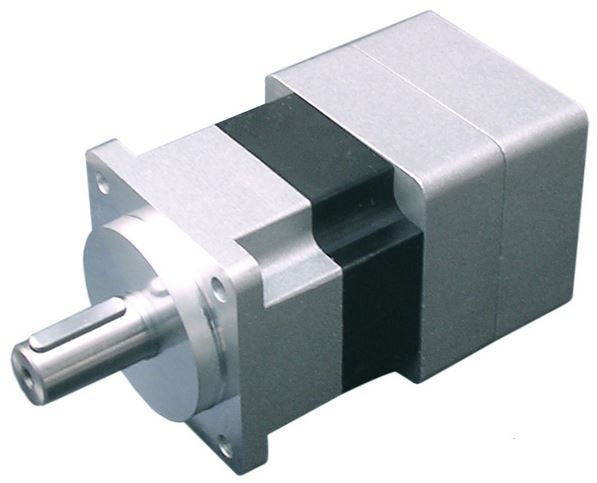

Planetary gearboxes are low-backlash solutions for mechanical reduction. These gearboxes work with NEMA 23 Stepper motors and servos and are ideal for routers, laser cutters, plasma tables, and other CNC applications
PLANETARY GEARBOX WITH STEPPER MOTOR, REDUCE THE SPEED, INCREASE TORQUE, PRECISIONS, MAINLY USED FOR CNC ROUTER, CNC PLASMA, CNC LASER , MANY OTHER AUTOMATION SYSTEM
1- Gear Ratio: 10-1
2- Rated output torque about 25 NM
3- Max output torque about 50 NM
4- Max backlash (arc-min) 8-10 arc min
5- Max input speed (RPM), 3000 rmp or less, out speed, 300 or less
6-Efficiency about 91%
7-L1 body length, 85mm
Standard NEMA23 (Input hole 1/4" and Output shaft 1/2" )
Lifetime Lubrication
IP55 Protection
It will work with our NEMA 23 motors or Servo Motor
about 3 ibs
1 year limited warranty
