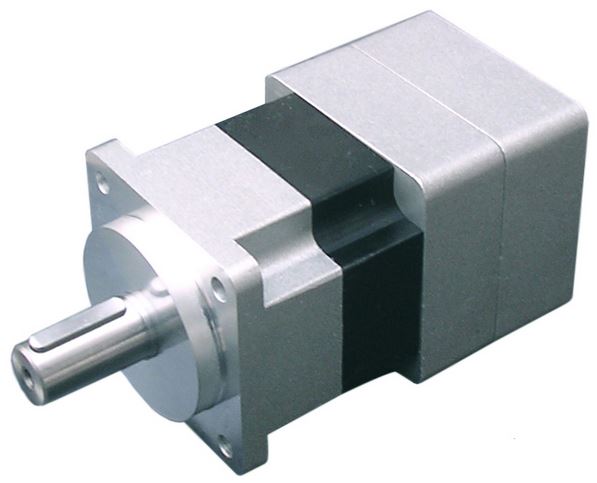

23GH101S NEMA23 10:1 Planetary Gearbox
PLANETARY GEARBOX WITH STEPPER MOTOR, REDUCE THE SPEED, INCREASE TORQUE, PRECISIONS, MAINLY USED FOR CNC ROUTER, CNC PLASMA, CNC LASER , MANY OTHER AUTOMATION SYSTEM
1- Gear Ratio: 10-1
2- Rated output torque about 25 NM
3- Max output torque about 50 NM
4- Max backlash (arc-min) 8-10 arc min
5- Max input speed (RPM), 3000 rmp or less, out speed, 300 or less
6-Efficiency about 91%
7-L1 body length, 85mm
Standard NEMA23 (Input hole 1/4" and Output shaft 1/2" )
Lifetime Lubrication
IP55 Protection
It will work with our NEMA 23 motors or Servo Motor
about 3 ibs
1 year limited warranty
