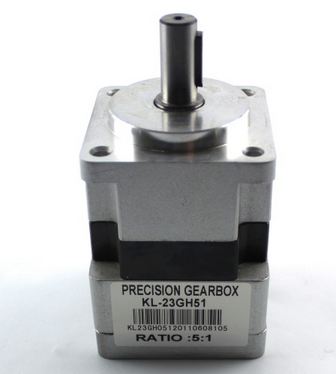

23GH51 NEMA23 5:1 Planetary Gearbox
Increase torque, precisions, mainly used for cnc for cnc router, cnc plasma, cnc laser, many other automation system
- Gear Ratio: 5:1
- Rated output torque 25 NM
- Max output torque 50 NM
- Max backlash (arc-min) 8-10 arc min
- Max input speed (RPM), 3000 rmp or less, out speed, 300 or less
- Efficiency about 91%
- L1 body length, 85mm
- Standard NEMA23 (Input hole 1/4" and Output shaft 1/2" )
- Lifetime Lubrication
- IP55 Protection
- It will work with our NEMA 23 motors or Servo Motor
- 1 year limited warranty
