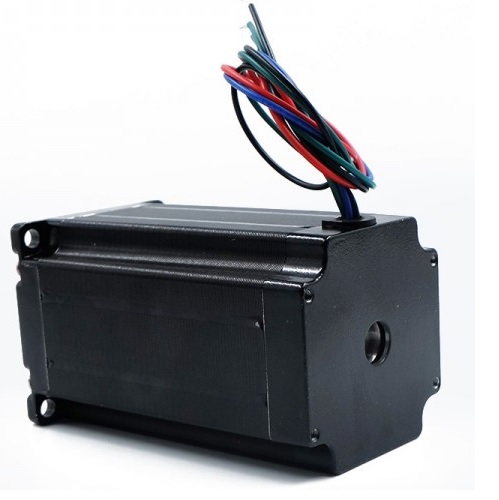

NEMA 23 Stepper Motor (425 oz-in) 23H2100-42-4A with 8mm Shaft

Name: NEMA 23 Stepper Motor (425 oz-in) 23H2100-42-4A with 8mm Shaft
Price: 49.63 USD
Availability: InStock

Description:

Step Angle: 1.8°

Holding Torque: 3.0Nm(425oz.in)

Rated Current/phase: 4.2A

Phase Resistance: 0.9ohms

Recommended Voltage: 24-48V

Inductance: 3.8mH±20%(1KHz)

Weight: 1.8kg

Lead Length: 30cm

8 mm Motor Shaft

$ 49.63

Motor Frame: Nema 23

Shaft Size: 8mm

Documents

KL23H2100-42-4A Drawing
