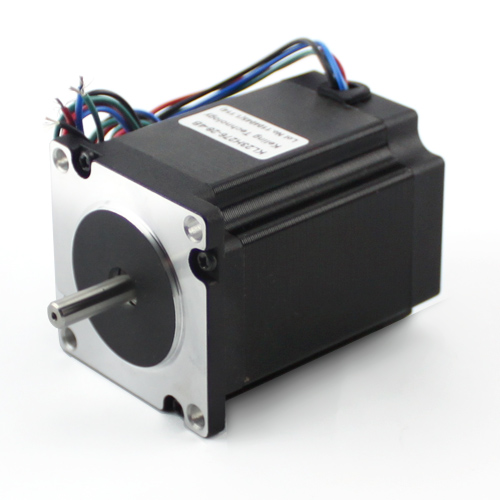

NEMA23 270oz/in 2.8A 1/4″ Dual Shaft Stepper Motor

23H276-28-4B

NEMA 23

Number Of Phases: 2<

Step Angle: 1.8 deg

Holding Torque: 270 oz. in

Rated Current/phase: 2.8 A

Phase Resistance: 1.13 ohms± 10%

Inductance: 3.6 mH ± 20% (1KHz)

Frame Size: 56.4 x 56.4 mm

Body Length: 76 mm

Shaft Diameter: Φ 1/4"

Shaft Length: 20.6 mm

Connection

This combination does not exist.

Motor Frame: Nema 23

Dual/Single Shaft: Dual

Shaft Size: 1/4''
