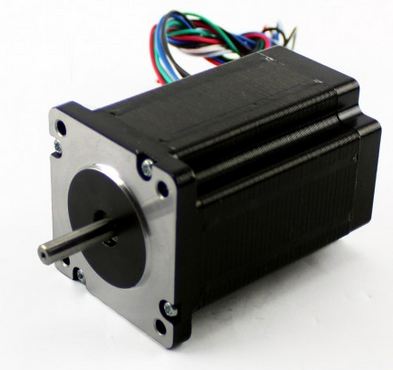

NEMA23 425oz/in 2.8A Stepper Motor 1/4 Dual shaft
NEMA 23 Frame Stepper Motor
23H286-20-8B
8-Wire Bi-polar or Uni polar,
425 oz in.
1.8° /200 Steps Per Rev.
2.8 Amps Current Per Phase ( Bipolar Parallel)
Blu/Wht & Red/Wht A+
Blu & Red A-
Grn/Wht & Blk/Wht B+
Grn & Blk to B-
| Dual/Single Shaft: Dual |
| Motor Frame: Nema 23 |
| Shaft Size: 1/4'' |
| Closed Loop: No |
