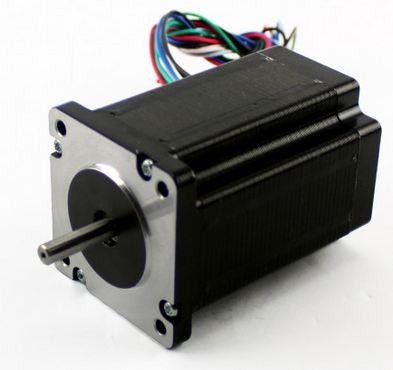

NEMA23 425oz/in 2.8A Stepper Motor 1/4 Dual shaft

Name: NEMA23 425oz/in 2.8A Stepper Motor 1/4 Dual shaft
Price: 36.67 USD
Availability: InStock

NEMA 23 Frame Stepper Motor

23H286-20-8B

8-Wire Bi-polar or Uni polar,

425 oz in.

1.8° /200 Steps Per Rev.

2.8 Amps Current Per Phase ( Bipolar Parallel)

Blu/Wht & Red/Wht A+

Blu & Red A-

Grn/Wht & Blk/Wht B+

Grn & Blk to B-

$ 36.67

Dual/Single Shaft: Dual

Motor Frame: Nema 23

Shaft Size: 1/4''

Closed Loop: No

Documents

23h286-20-8b - Hybrid Servo Driver.
