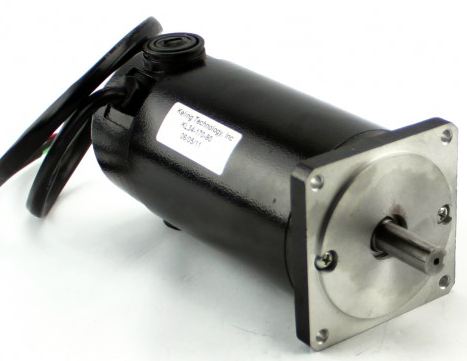

NEMA34 1125oz/in Dual Shaft Servo Motor
KL34-180-90 (NEMA 34) Dual Shaft, Front Shaft 1/2" Rear shaft 1/4"
1125 oz-in Peak 90V/40A
Green is Ground, Red is +, Black is Common)
Constant Torque: 226 oz-in
Peak Torque: 1125 oz-in
No load Speed: 3200 R.P.M
Terminal Voltage : 90 VDC
Continuous Current: 7.8 A
Peak Current: 40 A
Weight : 4.25 Kg
Skewed Rotor Design
