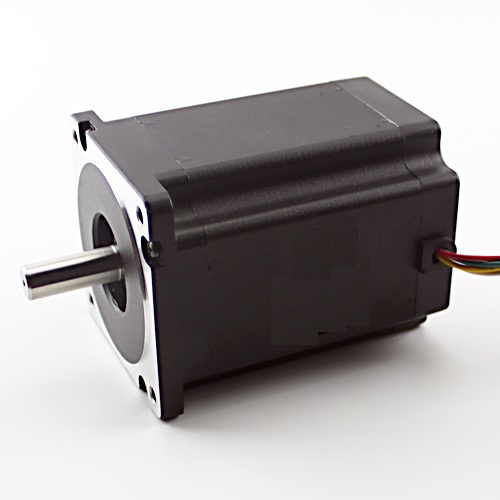

NEMA34 1200 oz-in Stepper Motor - 1/2" Single Shaft (34H2120-42-8A)
1200 oz in.
1.8° /200 Steps Per Rev.
6 Amps Current Per Phase ( Bipolar Parallel)
8-Wire
Bi-polar
NEMA34 Frame
Wiring:
Wire as Bipolar Parallel:
- Blue/Yellow to A+
- Red/Green to A-
- Brown/Orange to B+
- Black / White B-
Wire as Bipolar Series:
- Blue to A-
- Green to A-
- Brown to B+
- White to B-
- Red and Yellow Connect together
- Black and Orange Connect together
