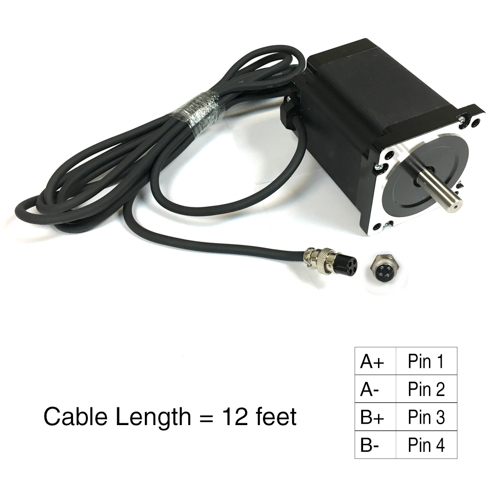

This large and powerful NEMA34 stepper motor can move a lot of weight at 1200 oz/in and 6.0 amps current draw per phase. 4 wire bi-polar operation; with 1/2" drive shaft.
NEMA 34 Frame,
1200 oz In. Hybrid Stepper Motor with 12 feet cable and connector
You will save time to wire the cable
1.8° /200 Steps Per Rev.
6 Amps Current Per Phase ( Bipolar Parallel)
4-Wire Bipolar,
1/2" shaft
Inductance: 6mH
A+ to pin1
A- to pin2
B+ to pin3
B- to pin4
