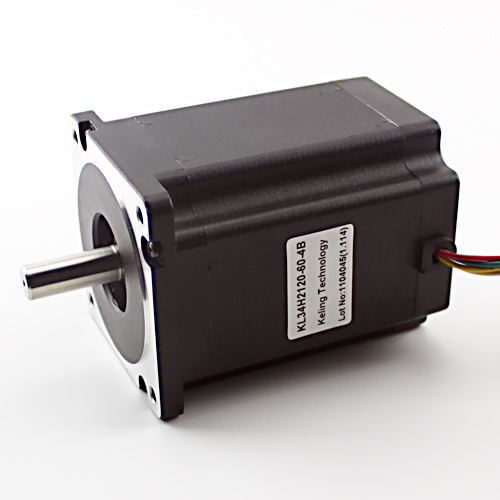

This very large and powerful NEMA34 stepper motor can move a lot of weight at 1200 oz/in and 6.0 amps current draw per phase. 4 wire bi-polar operation; with 1/2" dual drive shafts.
pls email us single or dual shaft , if not, we will ship it according the stock
(1/2" shaft with flat)
1200 oz In. Hybrid Motor
1.8° /200 Steps Per Rev.
6 Amps Current Per Phase ( Bipolar Parallel)
4-wire Bi-polar, NEMA 34 Frame
Yellow: A+
Green: A-
Red: B+
White: B-
