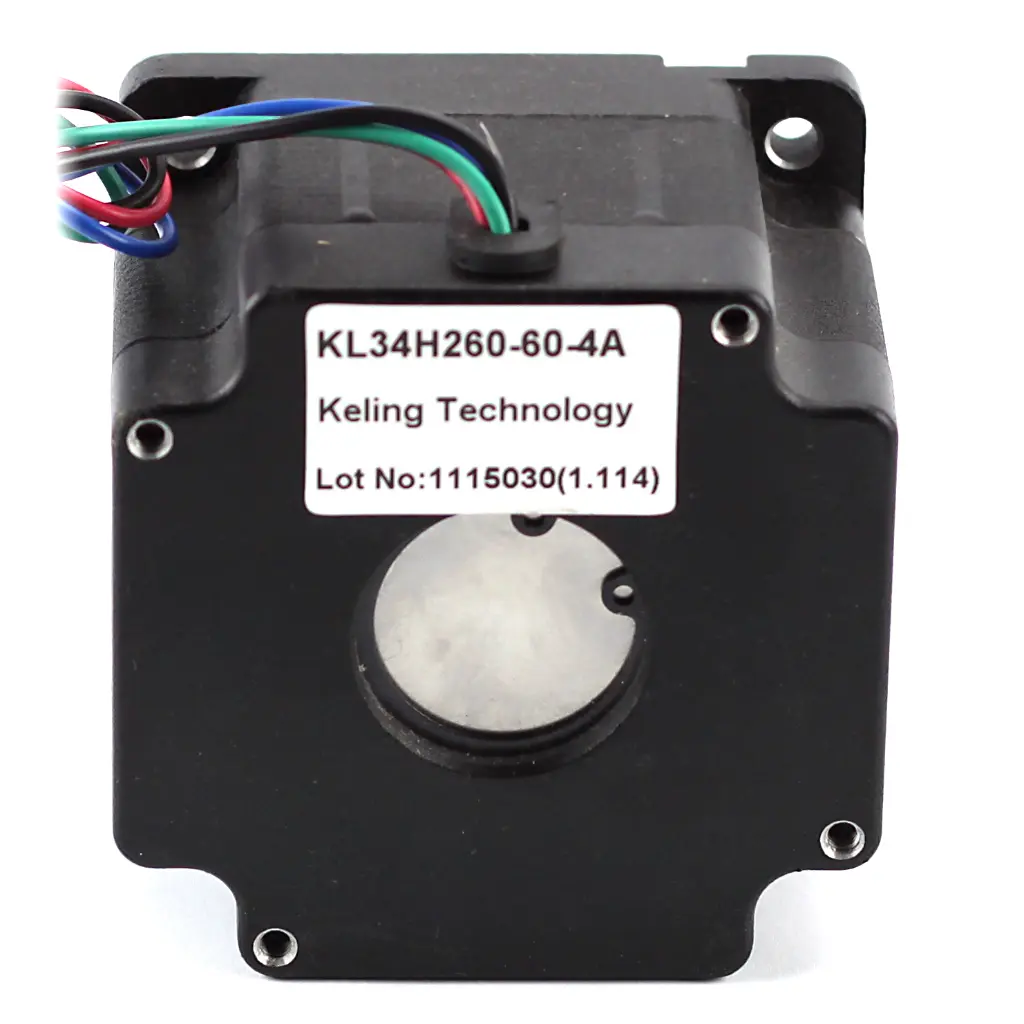

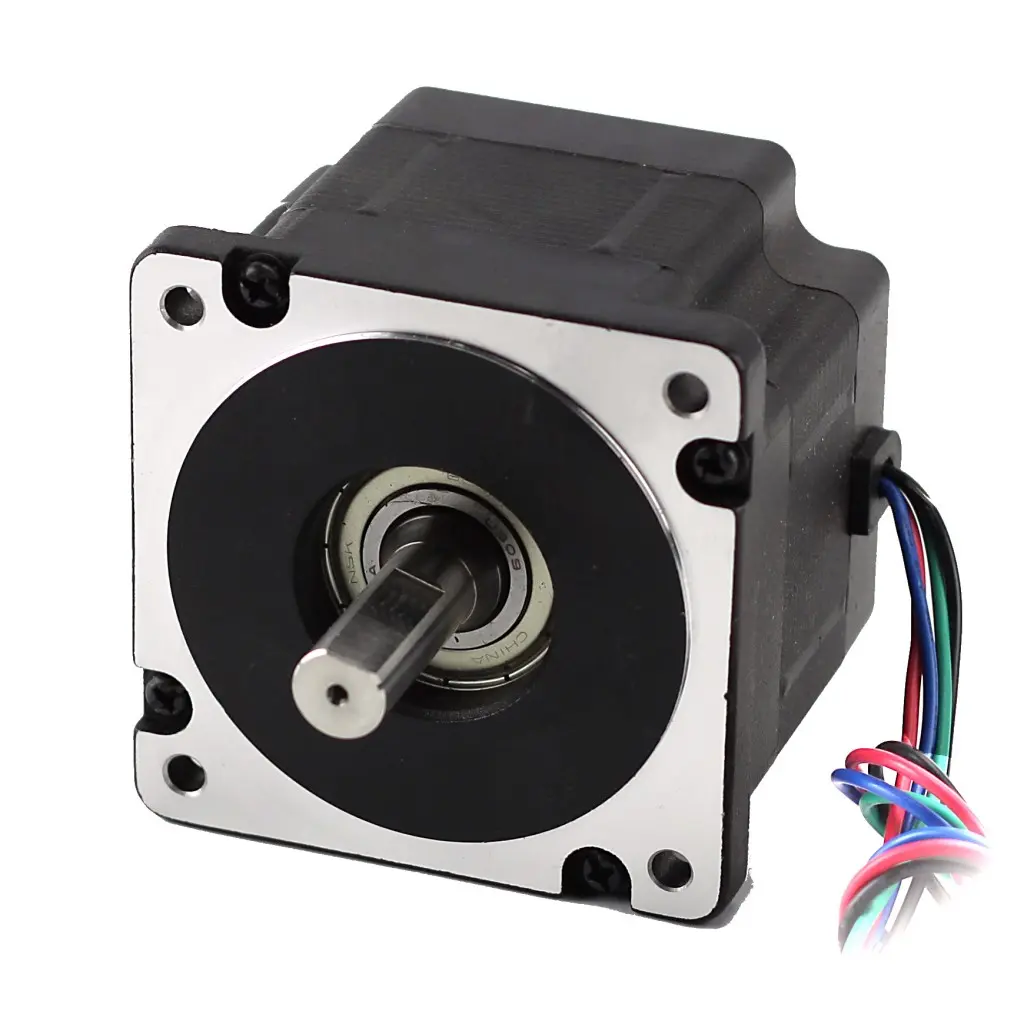

NEMA34 465 oz-in Stepper Motor

This large and powerful NEMA34 stepper motor can move a lot of weight at 465 oz/in and 6.0 amps current draw per phase. 8 wires can be wired for unipolar or bipolar operation, with a 1/2" single drive shaft.

1/2" Single Shaft

465 oz-in.

1.8° /200 Steps Per Rev.

6.0 Amps Current Per Phase ( Bipolar Parallel)

4-Wire Bi-Polar,

NEMA 34 Frame

Black :  A+

Green:  A-

Red:   B+

Blue:  B-
