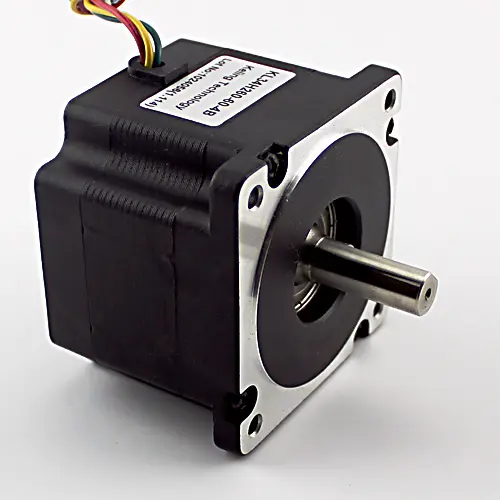

NEMA34 6A 456oz/in Stepper Motor – Dual Shaft

This large and powerful NEMA34 stepper motor can move a lot of weight at 465 oz/in and 6.0 amps current draw per phase. 8 wires can be wired for unipolar or bipolar operation, with 1/2" dual drive shafts.

NEMA34 6A 456oz/in Stepper Motor - Dual Shaft (KL34H260-60-4B)

465 oz in

1.8° /200 Steps Per Rev.

6.0 Amps Current Per Phase ( Bipolar Parallel)

4-Wire Bi-polar,

NEMA 34 Frame

• Red: A+
• Wht : A-
• Yel: B+
• GRN B-
