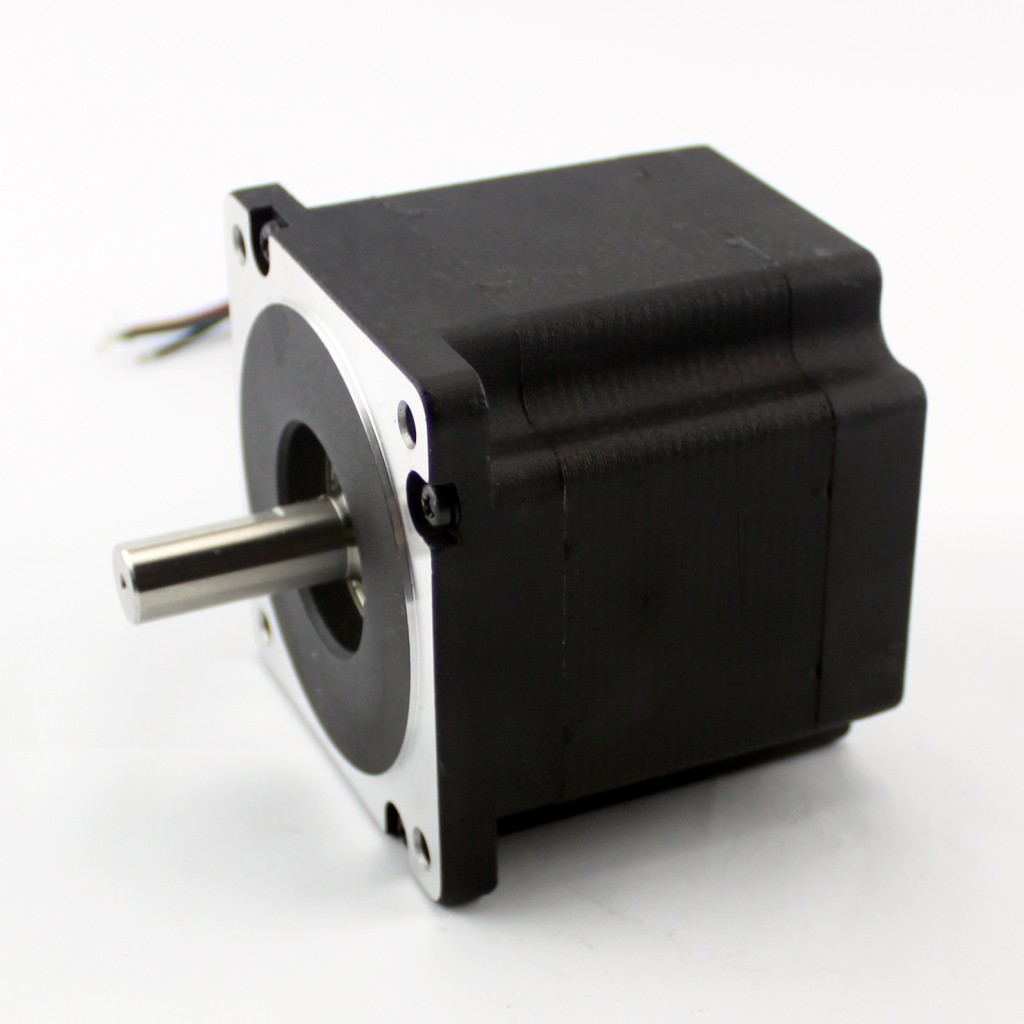

NEMA34 640 oz-in 4.5A Stepper Motor

640 oz In. Hybrid Motor

1.8° /200 Steps Per Rev.

4.5A Amps Current Per Phase

( Bipolar Parallel)

4-wire Bi-polar,

NEMA 34 Frame

Blk to A+

GRN to A-

Red to B+

Blue to B-

Bipolar parallel:

Blue/Yellow to A+

Red/Green A-

Brown/Orange B+

Black/White B-

Bipolar Series:

Blue to A+

Red connected to Yellow

Green to A-

Brown to B+

Black connected to Orange

White to B-
