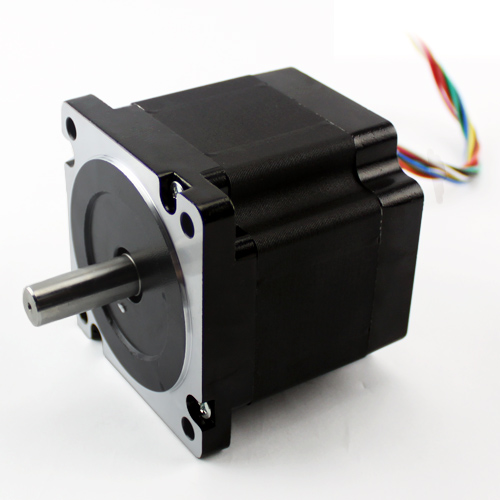

This large and powerful NEMA34 stepper motor can move a lot of weight at 640 oz/in and 6.3 amps current draw per phase. 8 wires can be wired for unipolar or bi-polar operation
640 oz-in. Hybrid Motor
1.8° /200 Steps Per Rev.
6.3 Amps Current Per Phase ( Bipolar Parallel)
8-Wire Bi-Polar or Unipolar, NEMA 34 Frame
Bipolar parallel:
Blue/Yellow to A+
Red/Green A-
Brown/Orange B+
Black/White B-
Bipolar Series:
Blue to A+
Red connected to Yellow
Green to A-
Brown to B+
