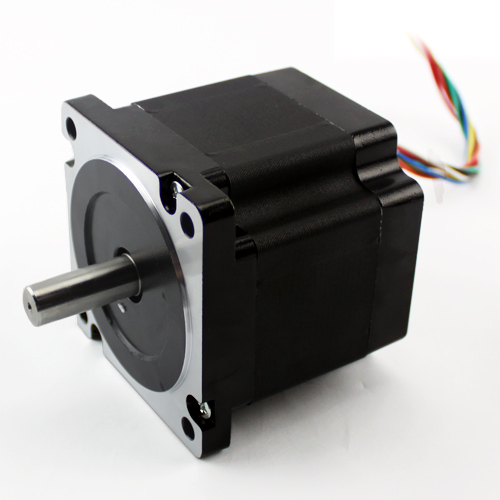

NEMA 34 640 oz-in Stepper Motor Dual shaft

34H280-45-8B (1/2" Dual Shaft)

640 oz-in

1.8° /200 Steps Per Rev.

6.3 Amps Current Per Phase ( Bipolar Parallel)

8-Wire Bi-Polar or Unipolar

,

Wiring:

Bipolar parallel:

• Blue/Yellow to A+
• Red/Green A-
• Brown/Orange B+
• Black/White B-

Bipolar Series:

• Blue to A+
• Red connected to Yellow
• Green to A-
• Brown to B+
• Black connected to Orange
• White to B-
