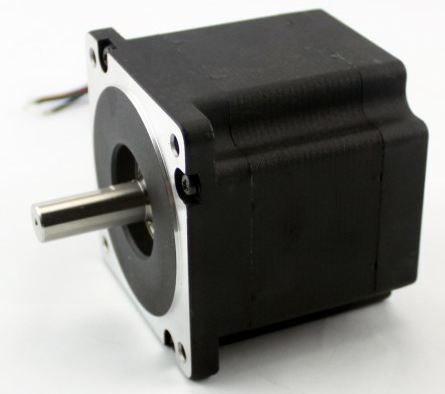

NEMA 34 5.5A 640oz/in Stepper Motor
This large and powerful NEMA34 stepper motor can move a lot of weight at 640 oz/in and 5.5 amps current draw per phase. 4 wire bi-polar operation; with a 1/2" single drive
640 oz In. Hybrid Motor
1.8° /200 Steps Per Rev.
5.5A Amps Current Per Phase ( Bipolar Parallel)
4-wire Bi-polar, NEMA 34 Frame
A+: Black
A-: Green
B+: Red
B-: Blue
| Motor Frame: Nema 34 |
