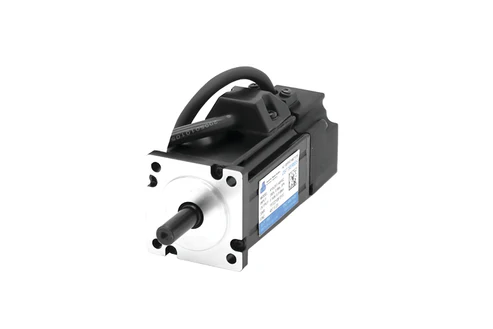

DST 0.05kW AC Servo Motor
0.05kW Low Inertia AC Servo Motor. Voltage class should be selected as 60V version for pair with DYN2 servo drive, or 200V version for pair with DYN4 servo drive.
Servo Motor Model | 405-DST-A6 _ _ 1 | |
---|---|---|
Rated Output | 0.05kW | |
Rated Voltage | 60V | 200V |
Applicable Servo Drive | DYN2-T1 | DYN4-L01 |
Rated Torque | 0.16Nm | |
Instantaneous Max. Torque | 0.48Nm | |
Rated Current | 2.0A | 0.8A |
Max. Current | 6.0A | 2.4A |
Rated Speed | 3000rpm | |
Max. Speed | 5000rpm | |
Rotor Inertia | 0.036kg-cm^2 | |
Torque Coefficient | 0.08N∙m/A | 0.225N∙m/A |
Encoder | 16-bit Absolute [ ABS-16-01 ] | |
Mass | 0.47kg | |
Ratings | Time Rating: Continuous Thermal Class: F Excitation Method: Permanent Magnet Insulation Resistance: DC500V, >20MΩ Noise: ≤60dB; No Special Noise | |
Environment | Ambient Temperature: 0~40 °C Storage: -20~50°C Ambient Humidity: 20~80% No Condensation | |
Enclosure | IP65 | |
Shock | 98m/s2 Max. (10G) |
