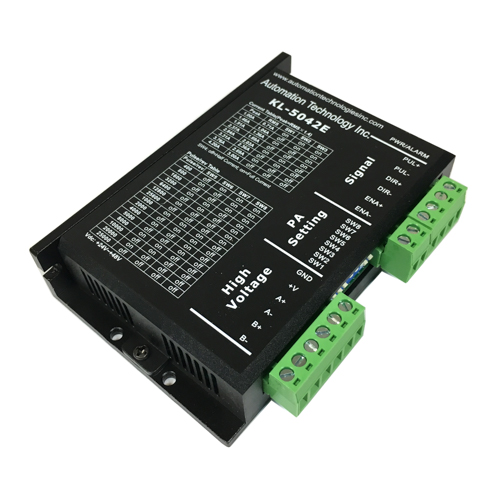

5042E - Digital Bipolar Stepper Motor Driver-32-bit DSP Based

5042E Digital Stepper Driver:

High Performance, Based on DSP Algorithm.

Anti-Resonance provides optimum torque and nulls mid-range instability

• • Motor auto-identification and parameter auto-configuration technology,
  offers optimum responses with different motors
• Multi-stepping allows a low-resolution step input to producea higher microstep output for smooth system performance
• Microstep resolutions programmable, from full-step to 51,200 steps/rev
• Can be set by Dip switch (2,4,8,16,32,64,128,256,5,10,25,50,125,250)
• Supply voltage up to +46 VDC
• Output current programmable, from 0.5A to 4.2A(Can be set by Dip switch too)
• Pulse input frequency up to 200 KHz
• TTL-compatible and optically isolated input
• Full or Half Current, Sw4: Off Half Current
• Suitable for 2-phase and 4-phase motors
• Support PUL/DIR and CW/CCW modes
• Over-voltage, over-current, and phase-error protection

One Year Warranty
