NEMA 23 Closed Loop Stepper Motor System-Hybrid Servo Kit, 32 bit DSP Based: 282 oz-in

https://www.cnc4pc.com/web/image/product.template/1694/image_1920?unique=62cde2c

The Hybrid Servo Drive offers an alternative for applications requiring high performance and high reliability when the servo was the only choice, while it remains cost-effective.

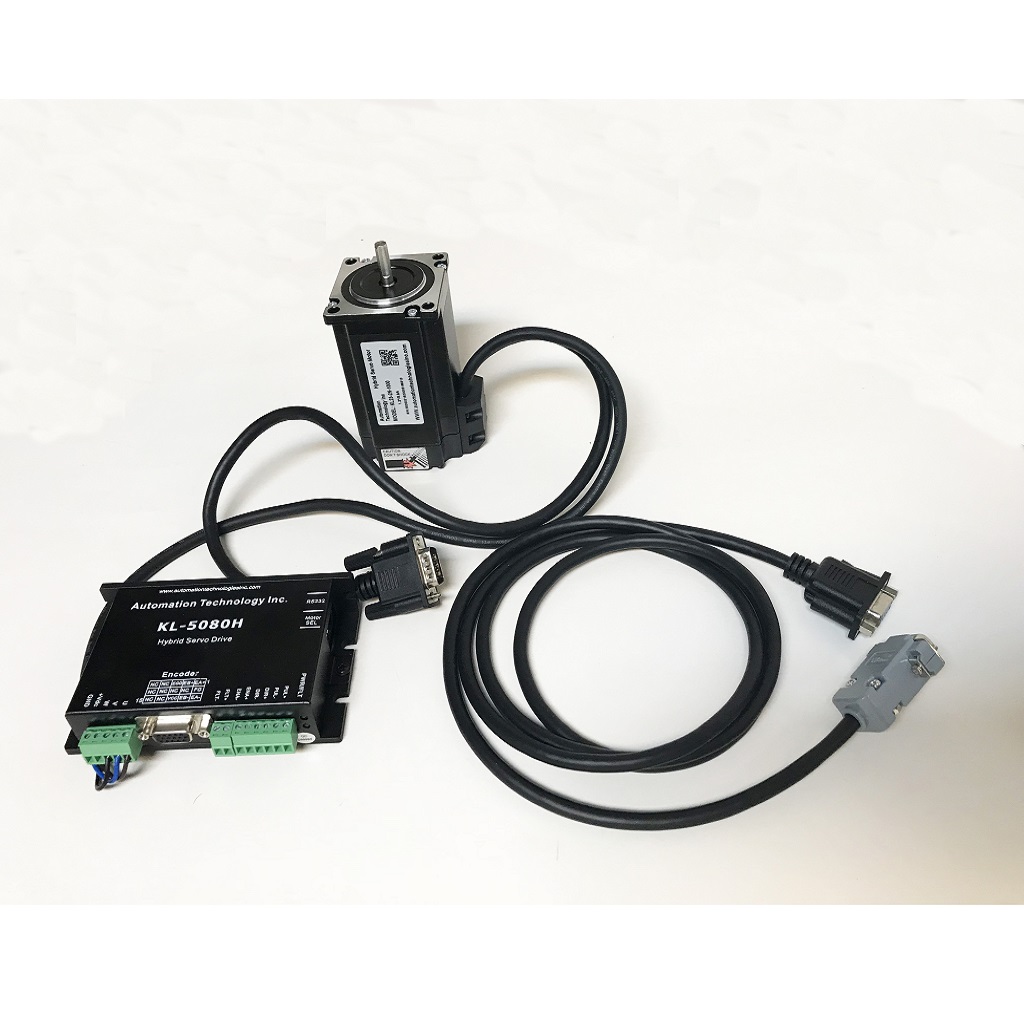

NEMA 23 Hybrid Servo kit (closed-loop stepper system):


one Hybrid Servo Driver 5080H, or ES-D508 (They are same driver)

one NEMA23 23-2N-1000 Hybrid Servo Motor with one Encoder 1000 line

A: 5080H, 3-phase Hybrid Servo Driver for NEMA23 Hybrid Servo Motor


20-50V, 8.0A Peak, No Tuning, Nulls loss of Synchronization

Closed-loop eliminates loss of synchronization

Broader operating range – higher torque and higher speed

Reduced motor heating and more efficient

Smooth motion and super-low motor noise

Do not need a high torque margin

No Tuning and always stable

Fast response, no delay, and almost no settlement time

High torque at starting and low speed, high stiffness at standstill

Lower cost

B: NEMA23 Hybrid Servo Motor, 23-2N-1000, 1/4" shaft

Rated Torque 282 oz-in, 2 N-m, with one Encoder 1000 line

1000 pulses per revolution

Quadrature digital signals: 4000 steps per revolution

4000 / .05 pitch

80,000 counts per unit

U to Brown/Yellow

V to Blue

W to Black

If the wire color is different

Use: Blue to V,

Red to U,

Black to W,

Yellow/Green ( Not Connected)

183.55 183.55 USD 183.55

Not Available For Sale

  • Motor Frame
  • Closed Loop

This combination does not exist.

Motor Frame: Nema 23
Closed Loop: Yes
