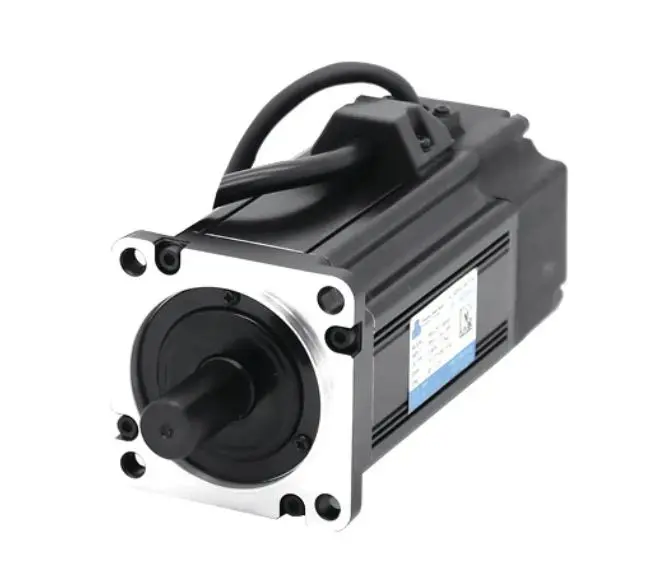

DST 0.2kW AC Servo Motor
0.20kW Low-Inertia AC Servo Motor. The voltage class should be selected as 60V for a pair with DYN2 servo drive or 200V for a pair with DYN4 servo drive.
| Servo Motor Model | 620-DST-A6 _ _ 1 | |
|---|---|---|
| Rated Output | 0.2kW | |
| Rated Voltage | 60V | 200V |
| Applicable Servo Drive | DYN2 | DYN4 |
| Rated Torque | 0.637Nm | |
| Instantaneous Max. Torque | 1.91Nm | |
| Rated Current | 4.5A | 2.1A |
| Max. Current | 11.3A | 6.5A |
| Rated Speed | 3000rpm | |
| Max. Speed | 5000rpm | |
| Rotor Inertia | 0.232kg-cm^2 | |
| Torque Coefficient | 0.169N∙m/A | 0.312N∙m/A |
| Encoder | 16-bit Absolute [ ABS-16-01 ] | |
| Mass | 1.0kg | |
| Ratings | Time Rating: Continuous Thermal Class: F Excitation Method: Permanent Magnet Insulation Resistance: DC500V, >20MΩ Noise: ≤60dB; No Special Noise | |
| Environment | Ambient Temperature: 0~40 °C Storage: -20~50°C Ambient Humidity: 20~80% No Condensation | |
| Enclosure | IP65 | |
| Shock | 98m/s2 Max. (10G) |
