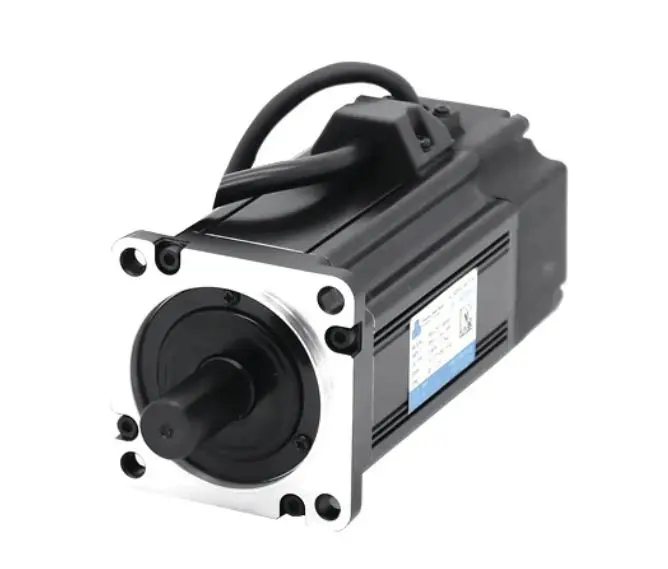

620-DST-A6HKB - 60mm Frame, 0.20kW, 200V Class, Keyed Shaft, with +24VDC Holding Brake

https://www.cnc4pc.com/web/image/product.template/1358/image_1920?unique=fe506a4





Servo Motor Model620-DST-A6 _ _ 1
Rated Output 0.2kW
Rated Voltage 60V 200V
Applicable Servo Drive DYN2 DYN4
Rated Torque 0.637Nm
Instantaneous Max. Torque 1.91Nm
Rated Current 4.5A 2.1A
Max. Current 11.3A 6.5A
Rated Speed 3000rpm
Max. Speed 5000rpm
Rotor Inertia 0.232kg-cm^2
Torque Coefficient 0.169N∙m/A 0.312N∙m/A
Encoder 16-bit Absolute [ ABS-16-01 ]
Mass 1.0kg
Ratings Time Rating: Continuous
Thermal Class: F
Excitation Method: Permanent Magnet
Insulation Resistance: DC500V, >20MΩ
Noise: ≤60dB; No Special Noise
Environment Ambient Temperature: 0~40 °C
Storage: -20~50°C
Ambient Humidity: 20~80%
No Condensation
Enclosure IP65
Shock 98m/s2 Max. (10G)
