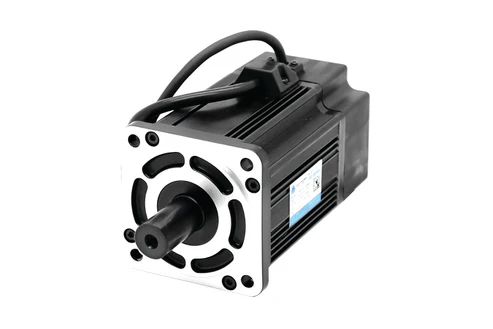

640-DST-A6HKB - 60mm Frame, 200V Class, 0.40kW, Keyed Shaft with +24VDC holding brake

(0 review)





Servo Motor Model640-DST-A6 _ _ 1
Rated Output 0.4kW
Rated Voltage 60V 200V
Applicable Servo Drive DYN2 DYN4
Rated Torque 1.27Nm
Instantaneous Max. Torque 3.82Nm
Rated Current 8.4A 2.8A
Max. Current 21.0A 8.5A
Rated Speed 3000rpm
Max. Speed 5000rpm
Rotor Inertia 0.426kg-cm^2
Torque Coefficient 0.181N∙m/A 0.455N∙m/A
Encoder 16-bit Absolute [ ABS-16-01 ]
Mass 1.65kg
Ratings Time Rating: Continuous
Thermal Class: F
Excitation Method: Permanent Magnet
Insulation Resistance: DC500V, >20MΩ
Noise: ≤60dB; No Special Noise
Environment Ambient Temperature: 0~40 °C
Storage: -20~50°C
Ambient Humidity: 20~80%
No Condensation
Enclosure IP65
Shock 98m/s2 Max. (10G)

New layer...
$ 410.50 $ 410.50

  • Shaft Type
  • Motor Frame
  • Holding Brake
Add to cart
Add to wishlist
Shaft Type: With Key
Motor Frame: 60 mm
Holding Brake: With +24VDC Brake
