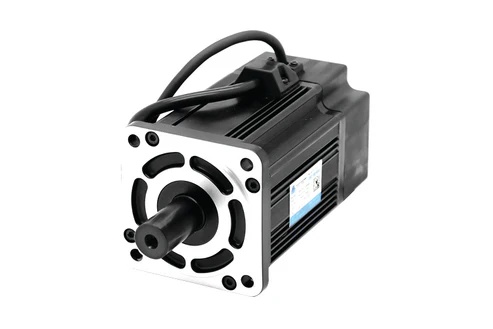

640-DST-A6TK1- 60mm Frame, 0.40kW Servomotor W/Keyed Shaft
| Servo Motor Model | 640-DST-A6 _ _ 1 | |
|---|---|---|
| Rated Output | 0.4kW | |
| Rated Voltage | 60V | 200V |
| Applicable Servo Drive | DYN2 | DYN4 |
| Rated Torque | 1.27Nm | |
| Instantaneous Max. Torque | 3.82Nm | |
| Rated Current | 8.4A | 2.8A |
| Max. Current | 21.0A | 8.5A |
| Rated Speed | 3000rpm | |
| Max. Speed | 5000rpm | |
| Rotor Inertia | 0.426kg-cm^2 | |
| Torque Coefficient | 0.181N∙m/A | 0.455N∙m/A |
| Encoder | 16-bit Absolute [ ABS-16-01 ] | |
| Mass | 1.65kg | |
| Ratings | Time Rating: Continuous Thermal Class: F Excitation Method: Permanent Magnet Insulation Resistance: DC500V, >20MΩ Noise: ≤60dB; No Special Noise |
|
| Environment | Ambient Temperature: 0~40 °C Storage: -20~50°C Ambient Humidity: 20~80% No Condensation |
|
| Enclosure | IP65 | |
| Shock | 98m/s2 Max. (10G) | |
