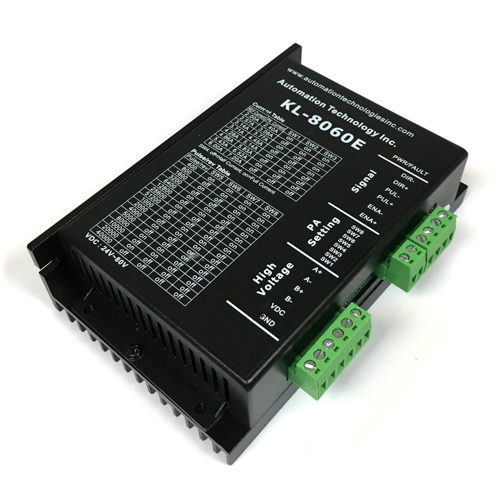

8060E Digital Bipolar Stepper Motor Driver-32 bit DSP Based

ATTENTION: If you use KL-8060E to replace  for the KL-8060 or any other stepper driver. pls verify your wiring.

KL-8060E 80VDC/6A Digital Stepper Driver:

Heat Sink is included.

High Performance, Based on DSP Algorithm

Anti-Resonance, provides optimum torque and nulls mid-range instability

• Motor auto-identification and parameter auto-configuration technology,

offers optimum responses with different motors

• Multi-Stepping allows a low resolution step input to produce

a higher microstep output for smooth system performance

• Microstep resolutions programmable, from full-step to 51,200 steps/rev

Can be set by Dip switch (2,4,8,16,32,64,128,256,5,10,25,50,125,250)

• Supply voltage up to +80 VDC

• Output current programmable, from 2A to 6A(Can be set by Dip switch too)

• Pulse input frequency up to 200 KHz

• TTL compatible and optically isolated input

• Full or Half Current , Sw4: Off= Half Current

• Suitable for 2-phase and 4-phase motors

• Support PUL/DIR and CW/CCW modes

• Over-voltage, over-current, phase-error protection

One Year Warranty

ATTENTION: If you use KL-8060E to replace  for the KL-8060 or any other stepper driver. pls verify your wiring.

Motor wires may be different
