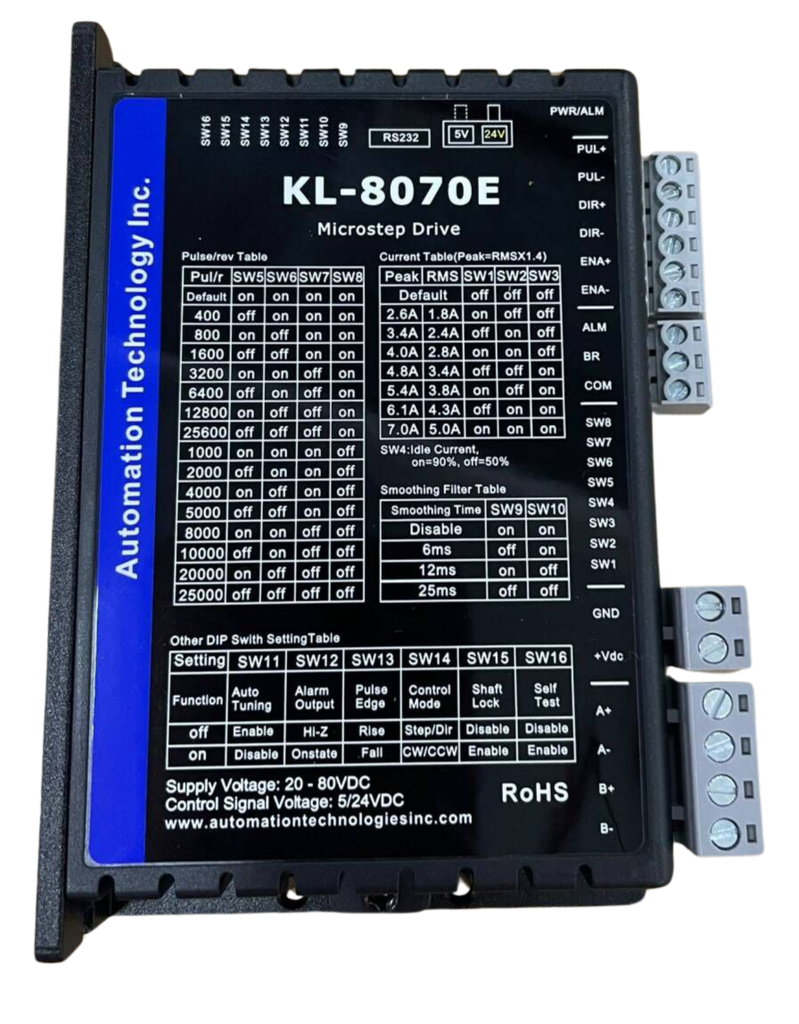

8070E - Digital Bipolar Stepper Motor Driver 32 bit DSP

https://www.cnc4pc.com/web/image/product.template/342/image_1920?unique=4657cac
KL-8070D 80VDC/7A Digital Stepper Driver: Heat Sink is included. High Performance, Based on DSP Algorithm. Anti-Resonance, provides optimum torque and nulls mid-range instability Motor auto-identification and parameter auto-configuration technology, offers optimum responses with different motors Multi-Stepping allows a low resolution step input to produce a higher microstep output for smooth system performance Microstep resolutions programmable, from full-step to 51,200 steps/rev, Can be set by Dip switch (2,4,8,16,32,64,128,5,10,20,25, 50,125) Supply voltage up to +72 VDC Output current programmable, from 0.5A to 7.0A(Can be set by Dip switch too) 2.6A,3.4A,4.0A,4.8A, 5.4A, 6.1A, 7.0A Pulse input frequency up to 200 KHz TTL compatible and optically isolated input Full or Half Current , Sw4: Off= Half Current Suitable for 2-phase and 4-phase motors Support PUL/DIR and CW/CCW modes Over-voltage, over-current, phase-error protection One Year USA Warranty   ATTENTION: If you use 8060E to replace for the 8060 or any other stepper driver. pls verify your wiring. KL-8060E 80VDC/6A Digital Stepper Driver: Heat Sink is included. High Performance, Based on DSP Algorithm Anti-Resonance provides optimum torque and nulls mid-range instability • Motor auto-identification and parameter auto-configuration technology, offers optimum responses with different motors • Multi-stepping allows a low-resolution step input to produce a higher micro step output for smooth system performance • Microstep resolutions programmable, from full-step to 51,200 steps/rev Can be set by Dip switch (2,4,8,16,32,64,128,256,5,10,25,50,125,250) • Supply voltage up to +80 VDC • Output current programmable, from 2A to 6A(Can be set by Dip switch too) • Pulse input frequency up to 200 KHz • TTL compatible and optically isolated input • Full or Half Current , Sw4: Off= Half Current • Suitable for 2-phase and 4-phase motors • Support PUL/DIR and CW/CCW modes • Over-voltage, over-current, phase-error protection One Year Warranty ATTENTION: If you use 8060E to replace for the 8060 or any other stepper driver. pls verify your wiring. Motor wires may be different

86.35 86.35 USD 86.35

Not Available For Sale

    This combination does not exist.
