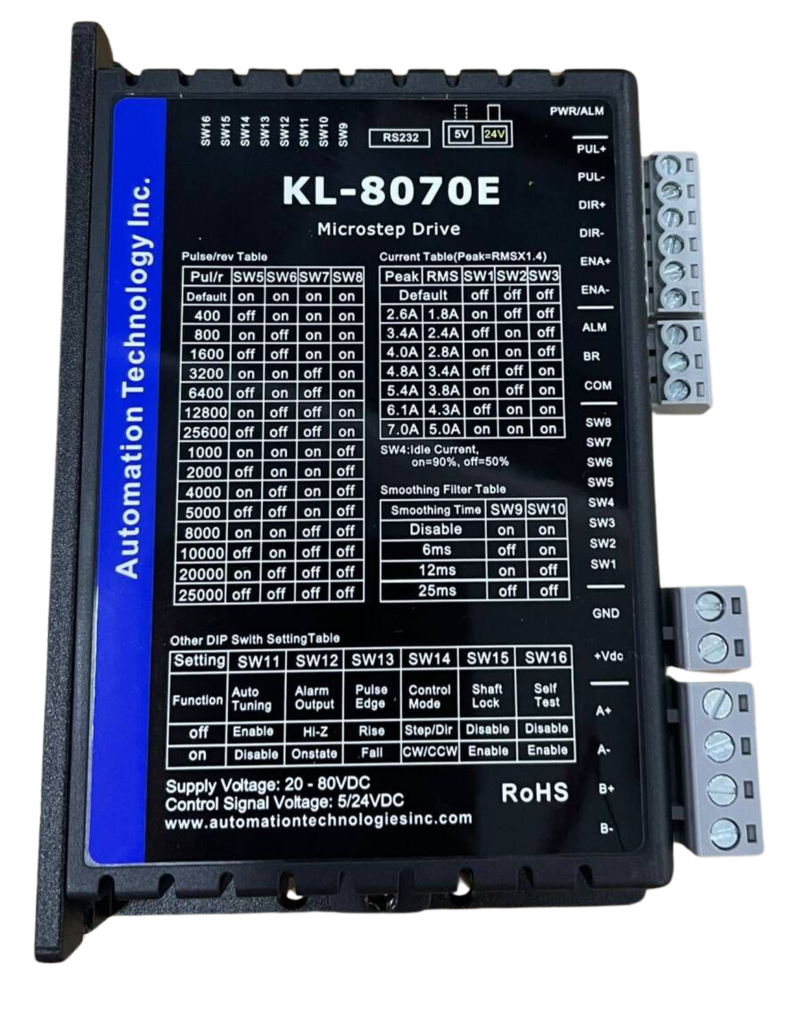

8070E - Digital Bipolar Stepper Motor Driver 32 bit DSP

KL-8070E 80VDC/7A Digital Stepper Driver:

Heat Sink is included.

High Performance, Based on DSP Algorithm.

Anti-Resonance provides optimum torque and nulls mid-range instability

• Motor auto-identification and parameter auto-configuration technology offers
• optimum responses with different motors
• Multi-stepping allows a low-resolution step input to produce
• a higher microstep output for smooth system performance
• Microstep resolutions programmable, from full-step to 51,200 steps/rev, can be
• set by Dip switch (2,4,8,16,32,64,128,5,10,20,25, 50,125)
• Supply voltage up to +72 VDC
• Output current programmable, from 0.5A to 7.0A(Can be set by Dip switch too)
• 2.6A,3.4A,4.0A,4.8A, 5.4A, 6.1A, 7.0A
• Pulse input frequency up to 200 KHz
• TTL-compatible and optically isolated input
• Full or Half Current, (Sw4: Off= Half Current)
• Suitable for 2-phase and 4-phase motors
• Support PUL/DIR and CW/CCW modes
• Over-voltage, over-current, pand hase-error protection

One Year USA Warranty
