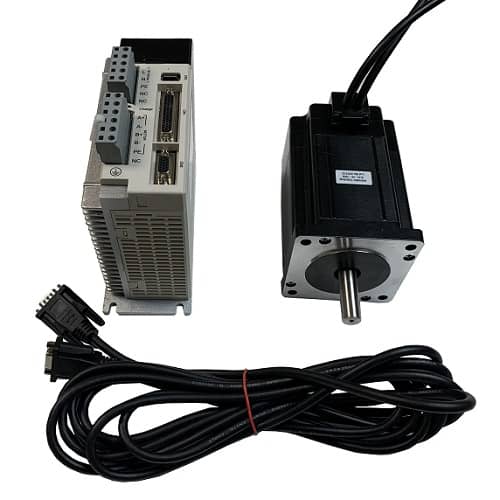

NEMA34 Closed Loop Stepper Motor System-Hybrid Servo Kit

NEMA 34 Hybrid Servo kit (closed-loop stepper system):

1pc Hybrid Servo Driver 8080L

1pc NEMA34 34-8N-1000L Hybrid Servo Motor with one Encoder 1000 line

1pc 3 meter cable or longer

A: 8080L 2-phase Hybrid Servo Driver:

8080L is a low cost, high-performance servo system, for a variety of large-scale automation equipment and instruments, it is better for users to expect low-cost, low vibration, low noise, high-precision, high-speed equipment, more suitable lower rigidity actuator load, such as a belt type than a conventional servo.

• Input 70-110VDC / 50-80VAC,  No Tuning, Nulls loss of Synchronization
• Output 6.0 A
• High-performance, low price
• Micro-step
• Automatic idle-current reduction
• Optical isolating signals I/O
• Max response frequency up to 200Kpps
• Low-temperature rise, smooth motion
• Online adaptive

B: NEMA34 Hybrid Servo Motor, 34-8N-1000L, 1/2" Shaft

• Rated Torque 1128 oz-in, 8 N-m, with Encoder 1000 line
• Number of Phases: 2
• Step Angle:  1.8°±5%
• Motor Holding Torque: 8.0 N.m
• Current: 6.0A
• Phase Inductance(1KHz): 4.3 ±20%mH

Wiring:

A+ to BLK

A- to GRN

B+ to RED

B- to BLU

C: 3 or 5-meter Encoder cable

1000 pulses per revolution

Quadrature digital signals: 4000 steps per revolution

4000 / .05 pitch

80,000 counts per unit
