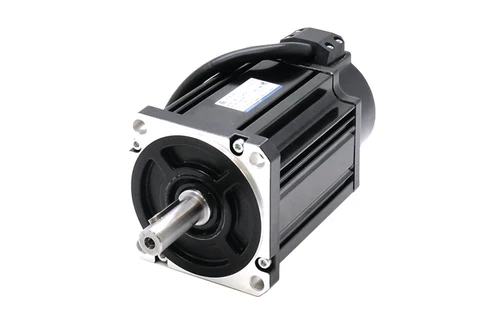

86H-DHT-A6MK1 - 86mm Frame, 1.0kW, Nema 34 Medium Inertia AC Servo Motor
1.0kW Medium Inertia AC Servo Motor. Metric NEMA34 mount. 14mm shaft.
Please contact us for non-standard inventory options including oil seal, or custom options.
| Servo Motor Model | 86H-DHT-A6MK1 |
|---|---|
| Rated Output | 1.0kW |
| Rated Voltage | 150V |
| Applicable Servo Drive | DYN4-H01 |
| Rated Torque | 4.0Nm |
| Instantaneous Max. Torque | 12.0Nm |
| Rated Current | 8.3A |
| Max. Current | 24.9A |
| Rated Speed *1 | 3000rpm |
| Max. Speed *1 | 5000rpm |
| Rotor Inertia | 3.7kg-cm^2 (4.2kg-cm^2 with brake) |
| Torque Coefficient | 0.48N∙m/A |
| Encoder | 16-bit Absolute [ ABS-16-01 ] |
| Mass | 4.1kg (7.2kg with brake) |
| Ratings | Time Rating: Continuous Excitation Method: Permanent Magnet Noise: ≤60dB; No Special Noise |
| Environment | Ambient Temperature: 0~40 °C Storage: -20~50°C Ambient Humidity: 20~80% No Condensation |
| Enclosure | IP65 |
| Shock | 98m/s2 Max. (10G) |
