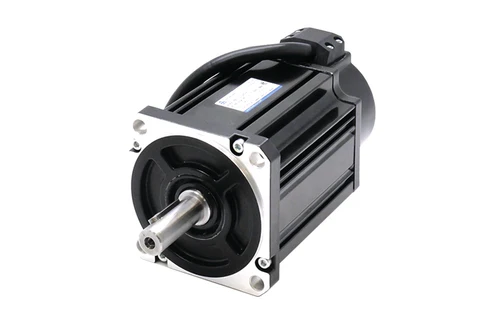

0.75kW Medium Inertia AC Servo Motor. Standard NEMA34 mount. 1/2" shaft.
| Servo Motor Model | 86N-DHT-A6MD1
|
|---|
| Rated Output | 0.75kW |
| Rated Voltage | 150V |
| Applicable Servo Drive | DYN2 / DYN4 |
| Rated Torque | 2.4Nm |
| Instantaneous Max. Torque | 7.1Nm |
| Rated Current | 7.2A |
| Max. Current | 21.5A |
| Rated Speed *1 | 3000rpm |
| Max. Speed *1 | 5000rpm |
| Rotor Inertia | 2.45kg-cm^2 |
| Torque Coefficient | 0.33N∙m/A |
| Encoder | 16-bit Absolute [ ABS-16-01 ] |
| Mass | 3.1kg |
| Ratings | Time Rating: Continuous
Excitation Method: Permanent Magnet
Noise: ≤60dB; No Special Noise |
| Environment | Ambient Temperature: 0~40 °C
Storage: -20~50°C
Ambient Humidity: 20~80%
No Condensation |
| Enclosure | IP65 |
| Shock | 98m/s2 Max. (10G) |
The DHT 0.75kW motor can either be paired with the DYN2 or DYN4 servo drive. Paired with the DYN2 servo drive, the rated and peak speed depends on the servo drive voltage input.
