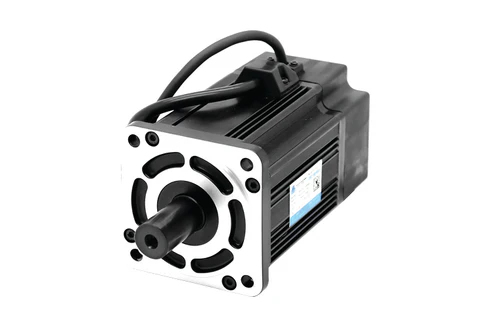

DST 0.75kW AC Servo Motor
0.75kW Low Inertia AC Servo Motor.
| Servo Motor Model | 880-DST-A6 _ _ 1 |
|---|---|
| Rated Output | 0.75kW |
| Rated Voltage | 200V |
| Applicable Servo Drive | DYN4 |
| Rated Torque | 2.39Nm |
| Instantaneous Max. Torque | 7.16Nm |
| Rated Current | 4.4A |
| Max. Current | 13.4A |
| Rated Speed | 3000rpm |
| Max. Speed | 5000rpm |
| Rotor Inertia | 0.73kg-cm^2 |
| Torque Coefficient | 0.547N∙m/A |
| Encoder | 16-bit Absolute [ ABS-16-01 ] |
| Mass | 2.69kg |
| Ratings | Time Rating: Continuous Thermal Class: F Excitation Method: Permanent Magnet Insulation Resistance: DC500V, >20MΩ Noise: ≤60dB; No Special Noise |
| Environment | Ambient Temperature: 0~40 °C Storage: -20~50°C Ambient Humidity: 20~80% No Condensation |
| Enclosure | IP65 |
| Shock | 98m/s2 Max. (10G) |
