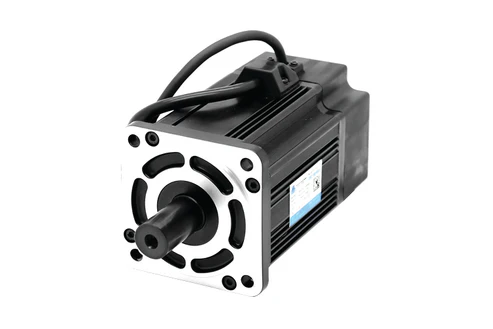

880-DST-A6HK1- 80mm Frame, 0.75kW, 200V Class, Keyed Shaft

880-DST-A6HK1- 80mm Frame, 0.75kW, 200V Class, Keyed Shaft

(0 review)



Motor Specification
Servo Motor Model880-DST-A6 _ _ 1
Rated Output 0.75kW
Rated Voltage 200V
Applicable Servo Drive DYN4
Rated Torque 2.39Nm
Instantaneous Max. Torque 7.16Nm
Rated Current 4.4A
Max. Current 13.4A
Rated Speed 3000rpm
Max. Speed 5000rpm
Rotor Inertia 0.73kg-cm^2
Torque Coefficient 0.547N∙m/A
Encoder 16-bit Absolute [ ABS-16-01 ]
Mass 2.69kg
Ratings Time Rating: Continuous
Thermal Class: F
Excitation Method: Permanent Magnet
Insulation Resistance: DC500V, >20MΩ
Noise: ≤60dB; No Special Noise
Environment Ambient Temperature: 0~40 °C
Storage: -20~50°C
Ambient Humidity: 20~80%
No Condensation
Enclosure IP65
Shock 98m/s2 Max. (10G)
$ 311.50 $ 311.50

  • Shaft Type
  • Motor Frame
Add to cart
Add to wishlist
Shaft Type: With Key
Motor Frame: 80 mm
