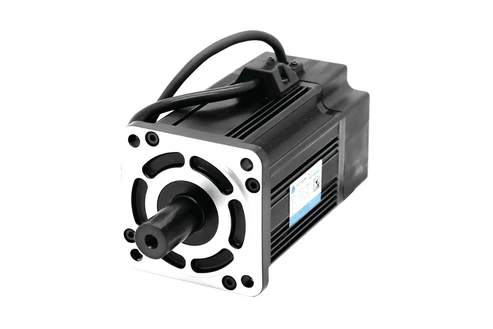

| Servo Motor Model | 880-DST-A6 _ _ 1 |
|---|
| Rated Output |
0.75kW |
| Rated Voltage |
200V |
| Applicable Servo Drive |
DYN4 |
| Rated Torque |
2.39Nm |
| Instantaneous Max. Torque |
7.16Nm |
| Rated Current |
4.4A |
| Max. Current |
13.4A |
| Rated Speed |
3000rpm |
| Max. Speed |
5000rpm |
| Rotor Inertia |
0.73kg-cm^2 |
| Torque Coefficient |
0.547N∙m/A |
| Encoder |
16-bit Absolute [ ABS-16-01 ] |
| Mass |
2.69kg |
| Ratings |
Time Rating: Continuous
Thermal Class: F
Excitation Method: Permanent Magnet
Insulation Resistance: DC500V, >20MΩ
Noise: ≤60dB; No Special Noise |
| Environment |
Ambient Temperature: 0~40 °C
Storage: -20~50°C
Ambient Humidity: 20~80%
No Condensation |
| Enclosure |
IP65 |
| Shock |
98m/s2 Max. (10G) |
