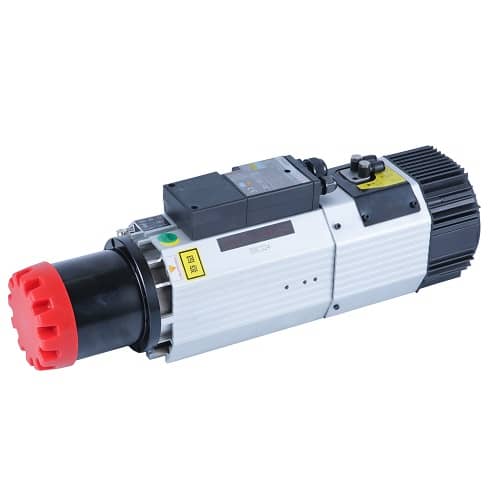

9KW Air-cooled ATC Spindle Motor ISO30 220V 24000rpm Long Nose Replace HSD
ATC Spindle Motor 9KW Air-cooled ISO 30 220V
24000rpm Long Nose Replace HSD
A three-phase asynchronous Automatic Tool Change (ATC) Spindle motor
Rated power(KW): 9KW
Rated voltage(V): 220Vac (if you need 380VAC, pls let me know)
Rated speed(rpm): 12000~24000rpm
Current(A): 32A
Frequency(Hz): 800HZ
Cooling: Air-cooled
Bearing type: 2×7011C P4 , 2×7009C P4
Length/width/hight(mm): 510/133/133
Lubricate: grease
Joint of nose: ISO30
Industrial Applications: CNC Router Machines
Certification: ISO9001-2000
| Watts: 9Kw |
| Volts: 220V |
| ATC: Yes |
| RPM: 24000 |
| Cooled: Water |
| Frequency: 800Hz |
