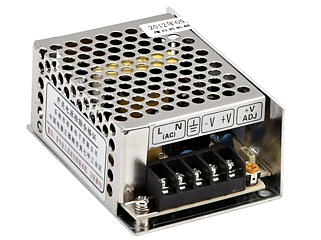

+15vdc @ 1 Amp 15W AC/DC ENCLOSED SWITCHING POWER SUPPLY

Model	MS-15-5	MS-15-12	MS-15-15	MS-15-24
DC output voltage	5V	12V	15V	24V
Output voltage range(Note:2)	±2%	±1%	±1%	±1%
Rated output current	3A	1.3A	1A	0.7A
Output current range	0-3A	0-1.3A	0-1A	0-0.7A
Wave and noise(Note:3)	70mVp-p	100mVp-p	100mVp-p	100mVp-p
Inlet stability(Note:4)	±0.5%	±0.5%	±0.5%	±0.5%
Load stability(Note:5)	±1%	±0.5%	±0.5%	±0.5%
DC output power	15W	15W	15W	15W
Efficiency	70%	76%	76%	72%
Adjustable range for DC voltage	+10.-5%	±10%	±10%	±10%
Input current	0.5A/115V 0.25A/230V
AC inrush current	Cold-start current 15A/115V 30A/230V
Leakage current	<0.5mA/240VAC
Overload protection	105%~150% Type: pulsing hiccup shutdown Reset: auto recovery
Temperature coefficient	±0.03%/°c(-10~+50°c)
Setup, rise , hold up time	200ms, 50ms, 20ms
Vibration	10~500Hz, 2G 10min,/1cycle, Period for 60min, Each axes
Withstand voltage	Input and output internal: 1.5KvAC, Input and enclosure:1.5KvAC, Output and enclosure:0.5KvAC
Working temperature and humidity	-10°c~+60°c(Refer to output derating curve), 20%~90%RH
Overall dimension	85—58—38mm
Weight	0.15Kgs
Safety standards	Meet UL 1012 requiement (Not apply for the mark)
EMC standards	Meet FCC PART 15 J Conduction class B
