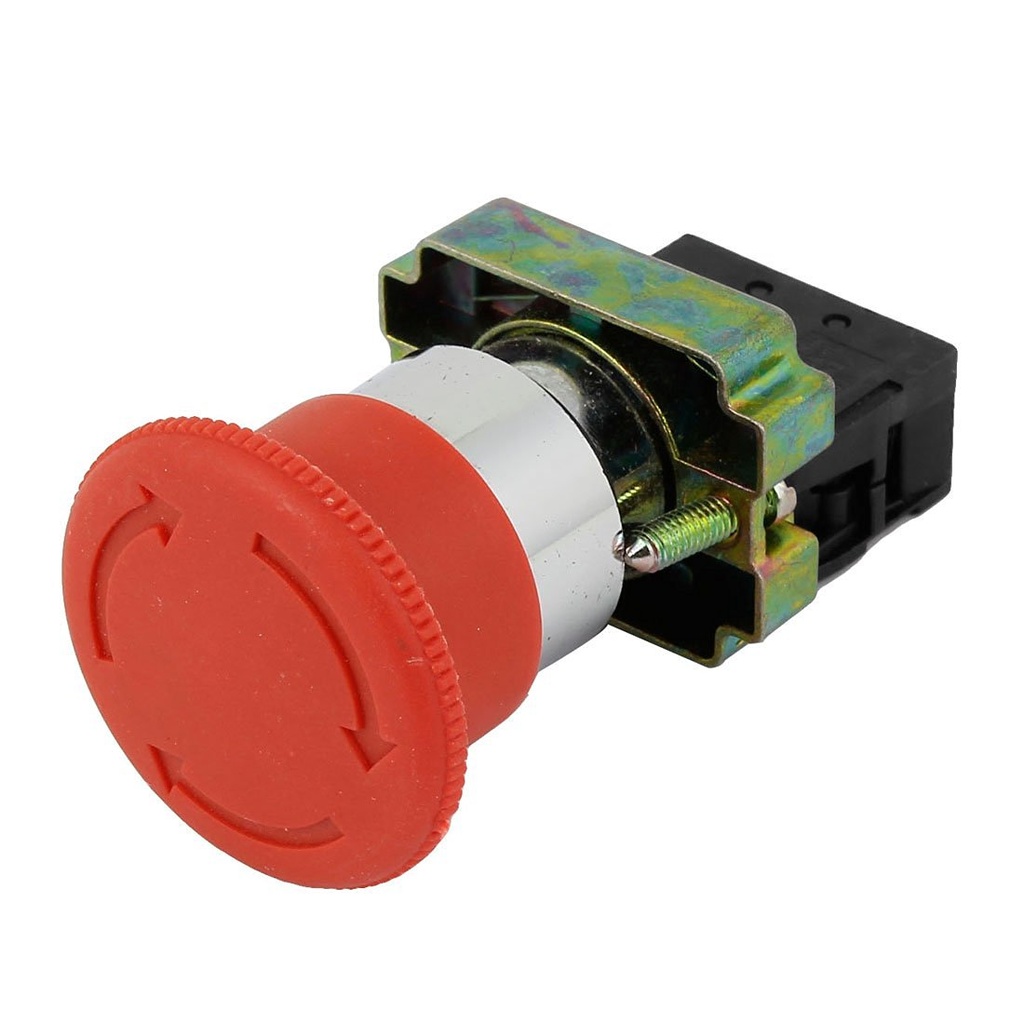

A31 - Latch Twist-Release E-Stop Button
Emergency Button Switch
Panel Mount Hole = 22.2mm
Widely used in mechanical equipment.
Operation environmental condition
Air temperature around-25C+70C
Height above sea level= 2000m
Air comparative humidity=90%
Pollution degree 3
Protection level IP65
Main technical parameters:
Rated: AC-15 36V/10A 110V/10A 220V/5A 380V/2.7A 660V/1.8A
DC-13 24V/4A 48V/4A 110V/2A 220V/1A 440V/0.6A
Conventional themal current 1th 10A
Insulation resistance =10mO
Resistance of electric shock =50mO
