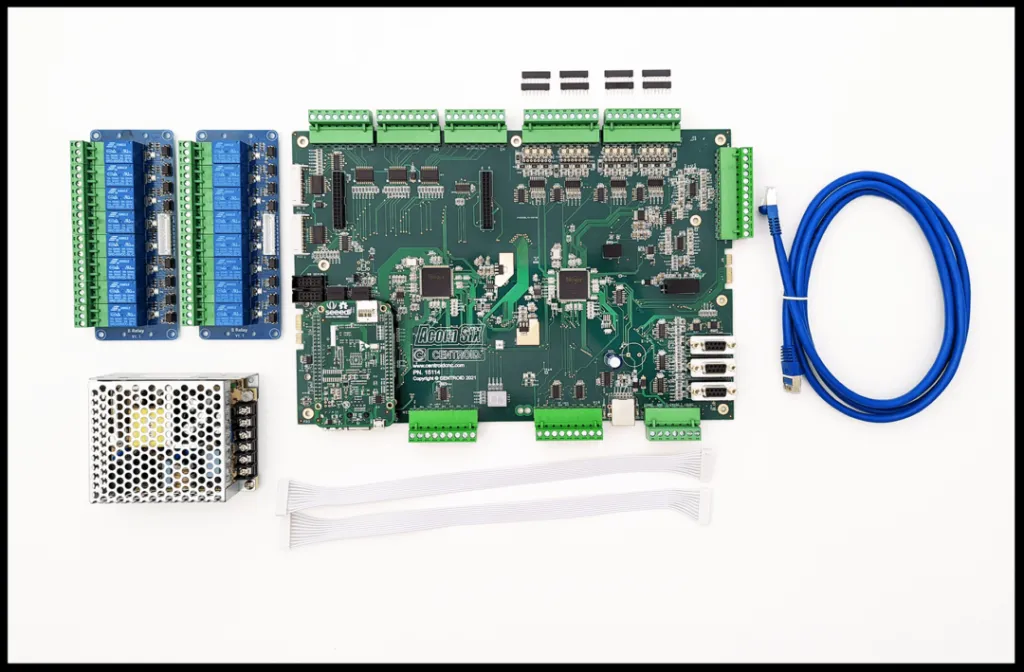

Centroid AcornSix CNC controller kit includes:
1x AcornSix CNC control board
2x Acorn Plug and Play Relay8 Module
1x Dual power 5 VDC and 24 VDC logic power supply
50/60 Hz 100-120 VAC/208-240 VAC input power
1x 15’ Shielded Ethernet cable
1x Riser Mounting Pan

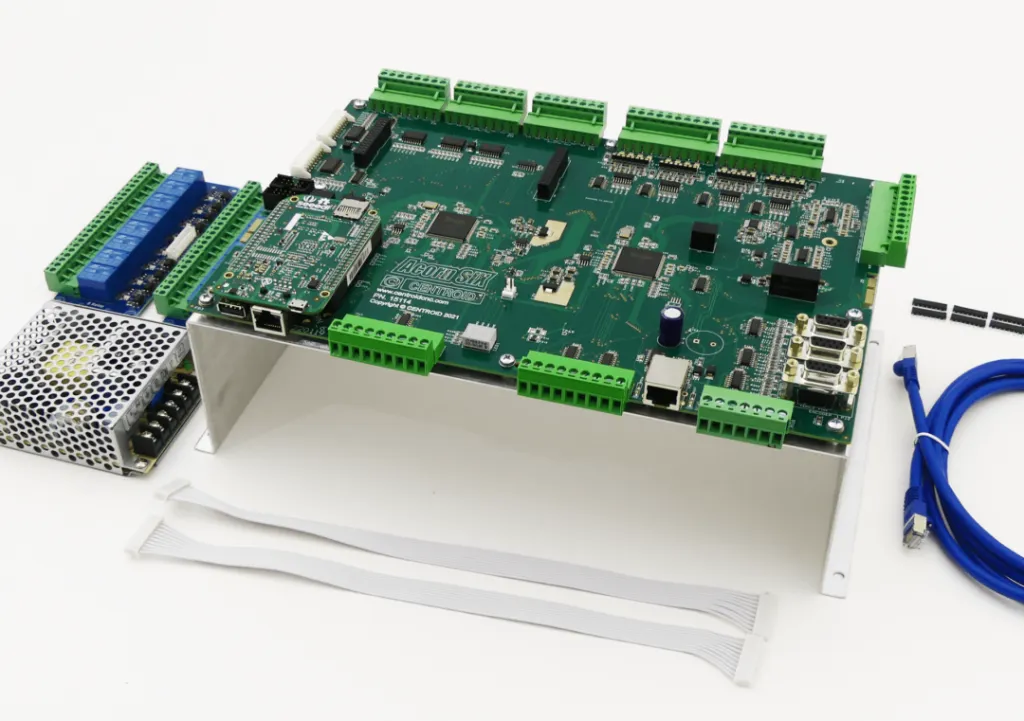

Included with the AcornSix controller kit is a mounting riser pan. The riser pan allows easy 4 hole mounting of the AcornSix to the back panel while allowing other wires, power supplies, relays etc to be mounted underneath it for space savings in the electrical cabinet.
The mounting pan is not required so if you don't want to use it you can mount the AcornSix using the through holes in the board itself.
