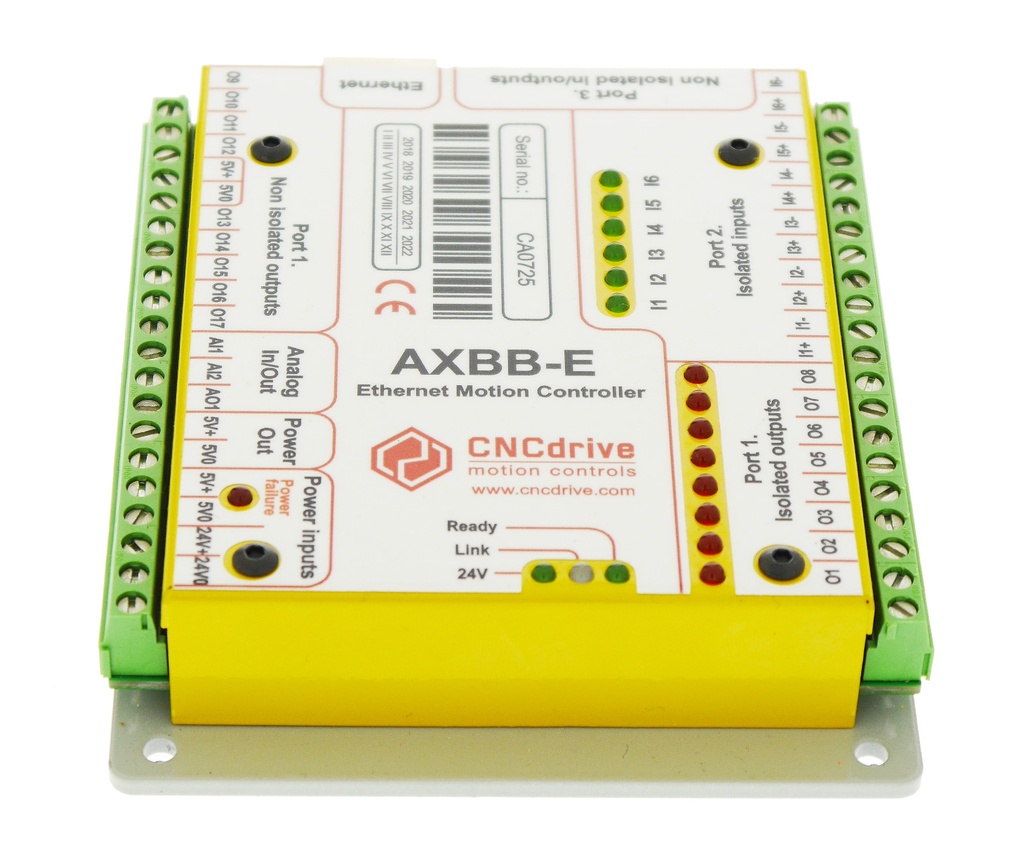

AXBB-E ethernet motion controller and breakout board combined controller

FEATURES:

• Complete motion controller and breakout board solution in a single board.
• 8 optically isolated high-speed N-channel power Mosfet transistor outputs.(NPN)
• 9 non-isolated buffered TTL outputs to control step/dir signals, laser driver etc.
• Isolated charge pump output with power N-channel Mosfet transistor.
• 6 high-speed optoisolator inputs.
• 1 IDC26 non-isolated extension port with standard LPT port pinout (12 outputs and 5 inputs).
• LED indicators on isolated I/Os.
• Isolated I/Os are 24Volts capable.
• Works with the UCCNC, Mach3 and Mach4 software's.
