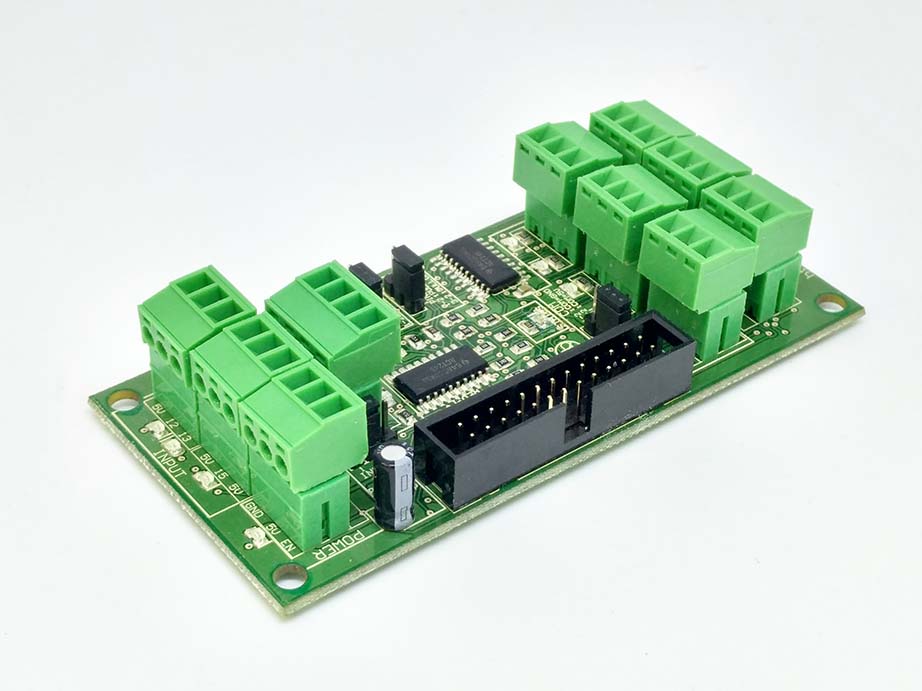

BI-Directional Parallel Port Interface Card
This card uses the popular circuits found in the C10, with high-power buffers that provide very stable signals, but in an industrial format to make it easy to implement control
boxes. This version of the C10 can be easily mounted on control boxes using DIN rails
and can also accommodate ribbon cables or DB25 connectors.
FEATURES:
- IEEE 1284 Standard compatible.
- PULL-UP or PULL-DOWN selection for inputs.
- Buffered inputs and outputs.
- Bidirectional pins 2-9.
- Output pins 1, 2, 3, 4, 5, 6, 7, 8, 9, 14, 16, 17. Or 1, 14, 16, 17.
- Input pins 10, 11, 12, 13, 15. Or 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12, 13, 15.
- Input and output pins with close-by ground or +5VDC connections.
- Input pins 10, 11, 12, 13, 15.
- Input and output pins with close-by ground or +5VDC connections
- External Enable Pin (EN). NEW.
- Works directly with popular CNC hardware and software.
- All TTL 5VDC signals.
- Status LEDs for enabling. NEW.
- Pluggable Screw-On Terminals. NEW.
- Status LEDs on all input and output connections. NEW.
- DIN Rail mountable. NEW.
- Enable/Disable through connection to the PC or Motion Controller. NEW.
