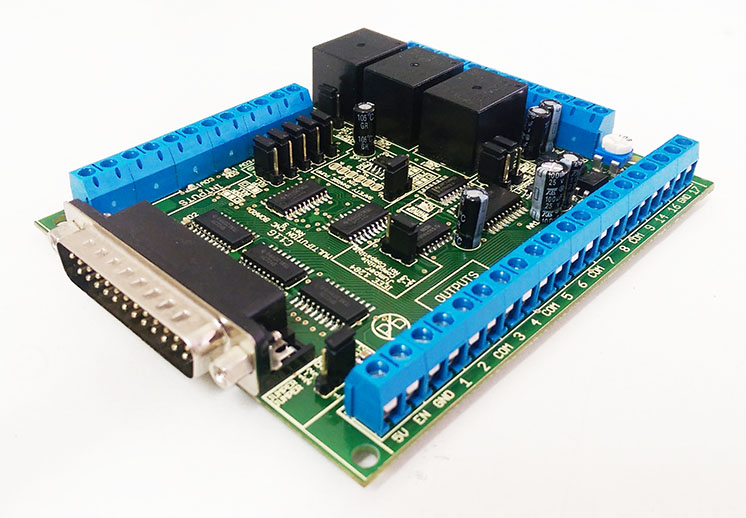

  3. C11G - Multifunction CNC Board
New Default Price list

OVERVIEW

This card has been designed to provide a flexible interface and functions to your computer projects by using the parallel port or USB-based or Ethernet-based controller. This board comes as a response to many customers that have been asking for a faster way to connect devices and reduce the possibility of wiring errors.

FEATURES

  • IEEE 1284 Standard compatible.
  • PULL-UP or PULL-DOWN selection for inputs.
  • Buffered inputs and outputs.
  • Microcontroller based SCHP.
  • Built-in Variable Speed Control.
  • Electromechanical Relays with NO and NC positions.
  • Status LEDs on all inputs and output connections.
  • Output pins 1, 2, 3, 4, 5, 6, 7, 8, 9, 14, 16 and 17. • Input pins 10, 11, 12, 13 and 15.
  • Input and output pins close to ground or +5vdc connections.
  • Common terminal for pins 2-9 can be ground or +5vdc.
  • External Enable Pin (EN).
  • Works directly with popular CNC hardware and software.
  • All TTL 5VDC signals.
  • Screw-On connections for all terminals.
  • All pins can be used in a concurrent manner.
