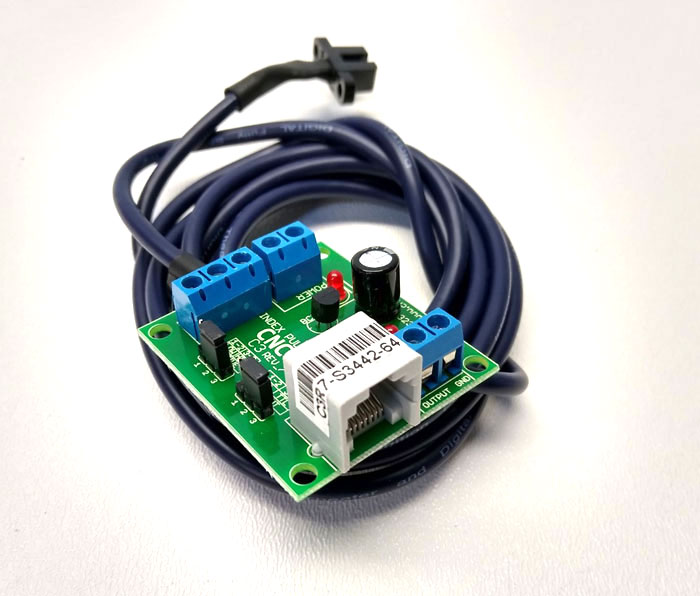

C3 - Index Pulse Card

https://www.cnc4pc.com/web/image/product.template/51/image_1920?unique=4657cac





OVERVIEW

This card provides easy way of capturing the pulse signal from photo-transistor and transmitting it to the parallel port.



FEATURES

  • Reads an index pulse from the spindle.
  • Acts as an optical switch for accurate homing.
  • TTL or Open collector output signal.
  • Active low or Active high output signal.
  • Comes with a Built-in LED that shows the status of the output pin at all times.
  • Comes with 6’ pre-wired shielded cable.
  • Easy connections.
  • Screw-On connections for all terminals.
  • Comes with an RJ45 Connector fast installation

31.65 31.65 USD 31.65

Not Available For Sale
